Fuse Box / TIPM

1998-2003 Ford Ranger Fuse Panel Cover XL54-10045D62-AAW OEM

OEM Part Number
XL5410045D62AAW
by Ford·MPN XL5410045D62AAW
$19.72
Last one in stock
Will this fit your vehicle? See the fitment table below to check.
PART CONDITION

Tested functional. All relays and fuses checked. Cleaned.

30-day money-back guarantee · tested before listing · ships same day from Detroit

5.0 (24)
Free Shipping — US and US territories

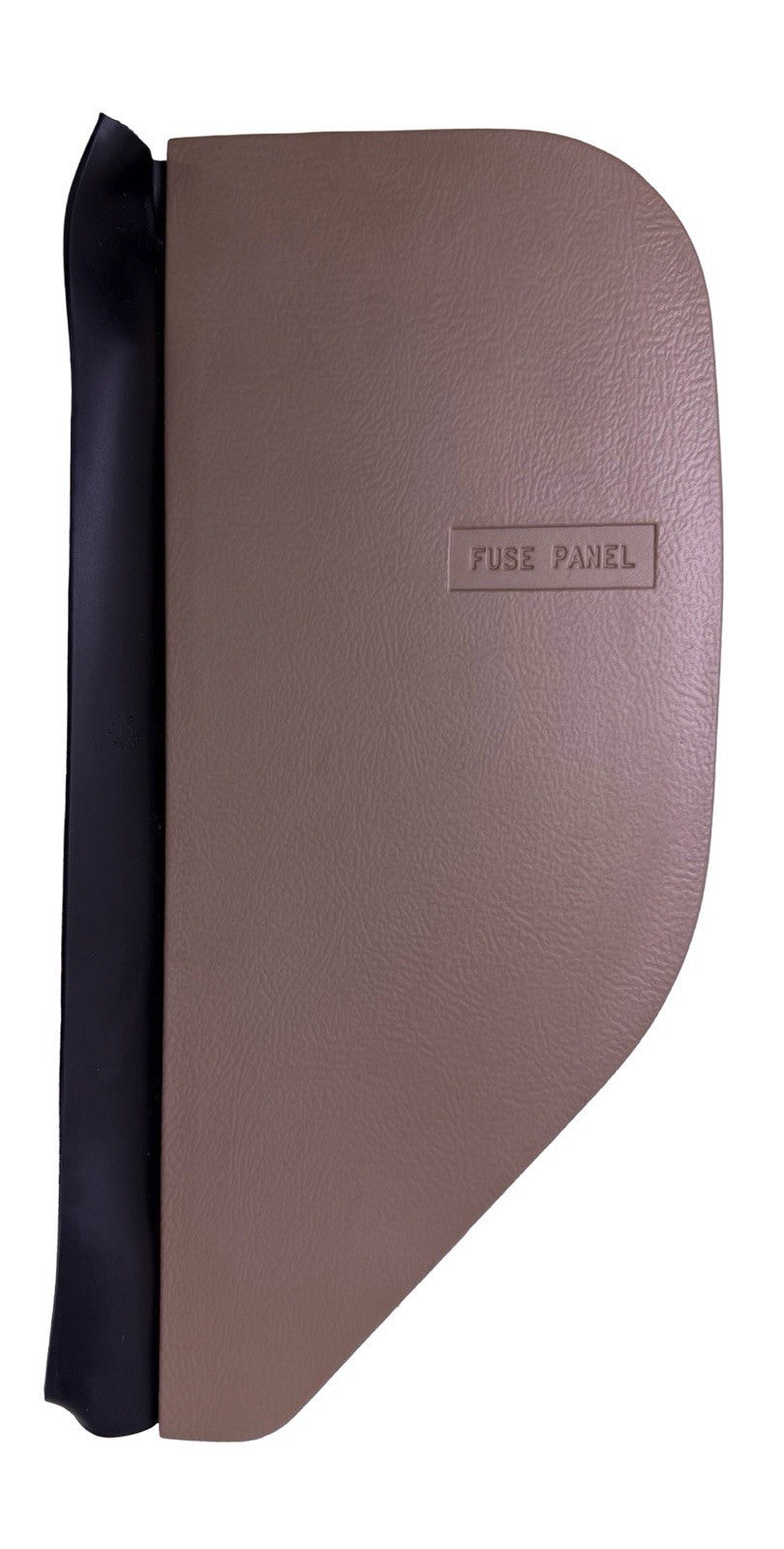

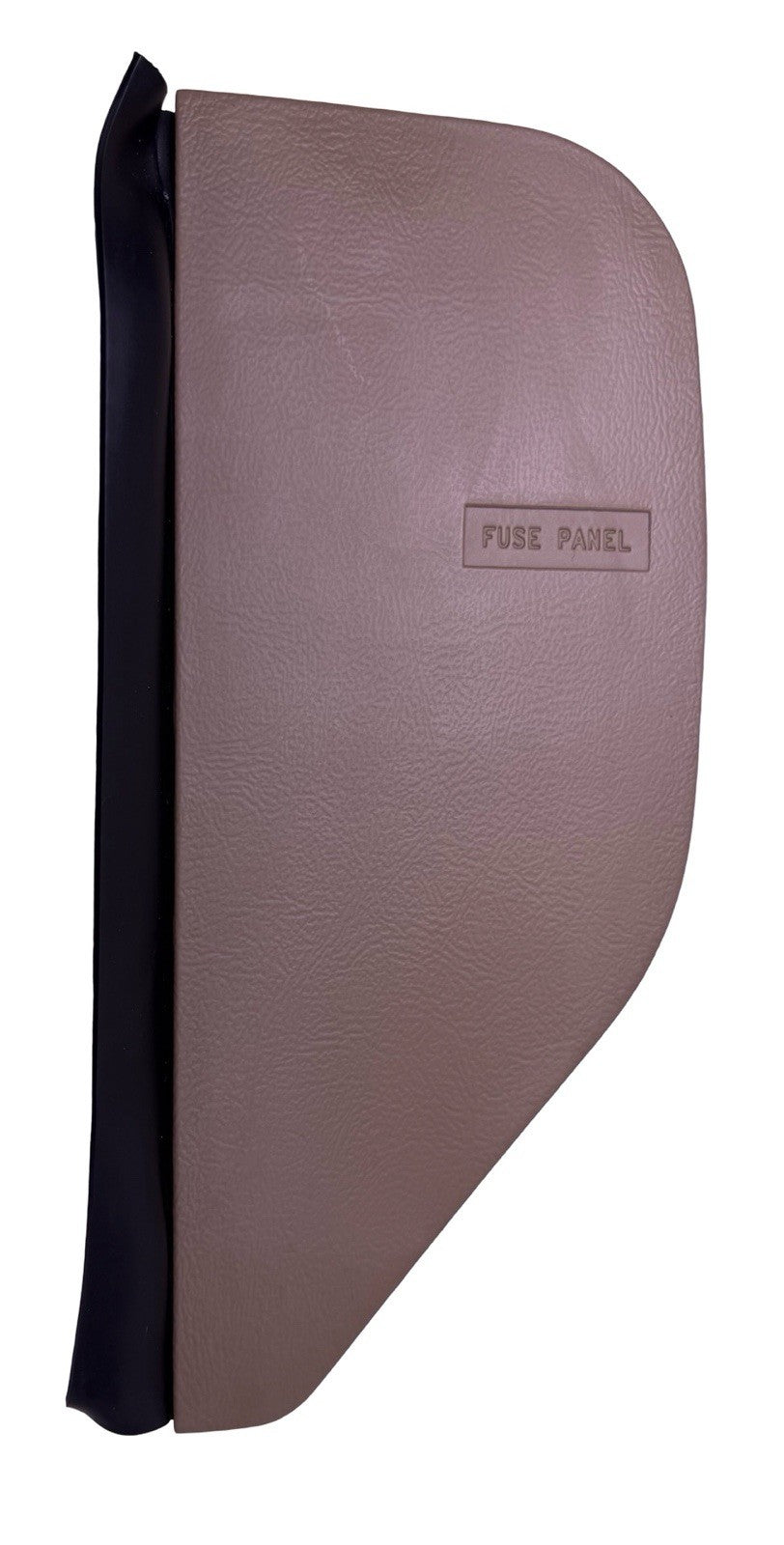

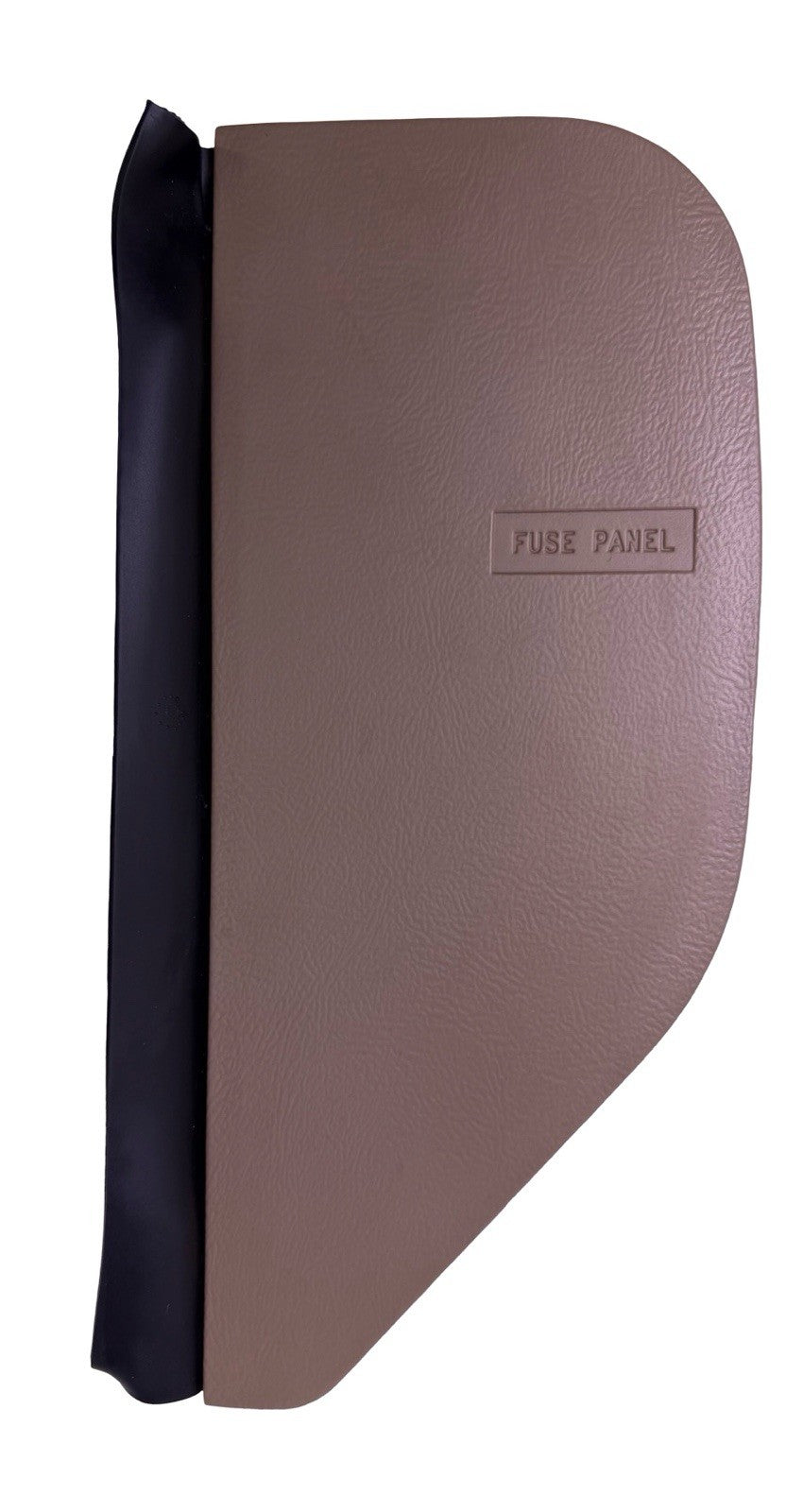

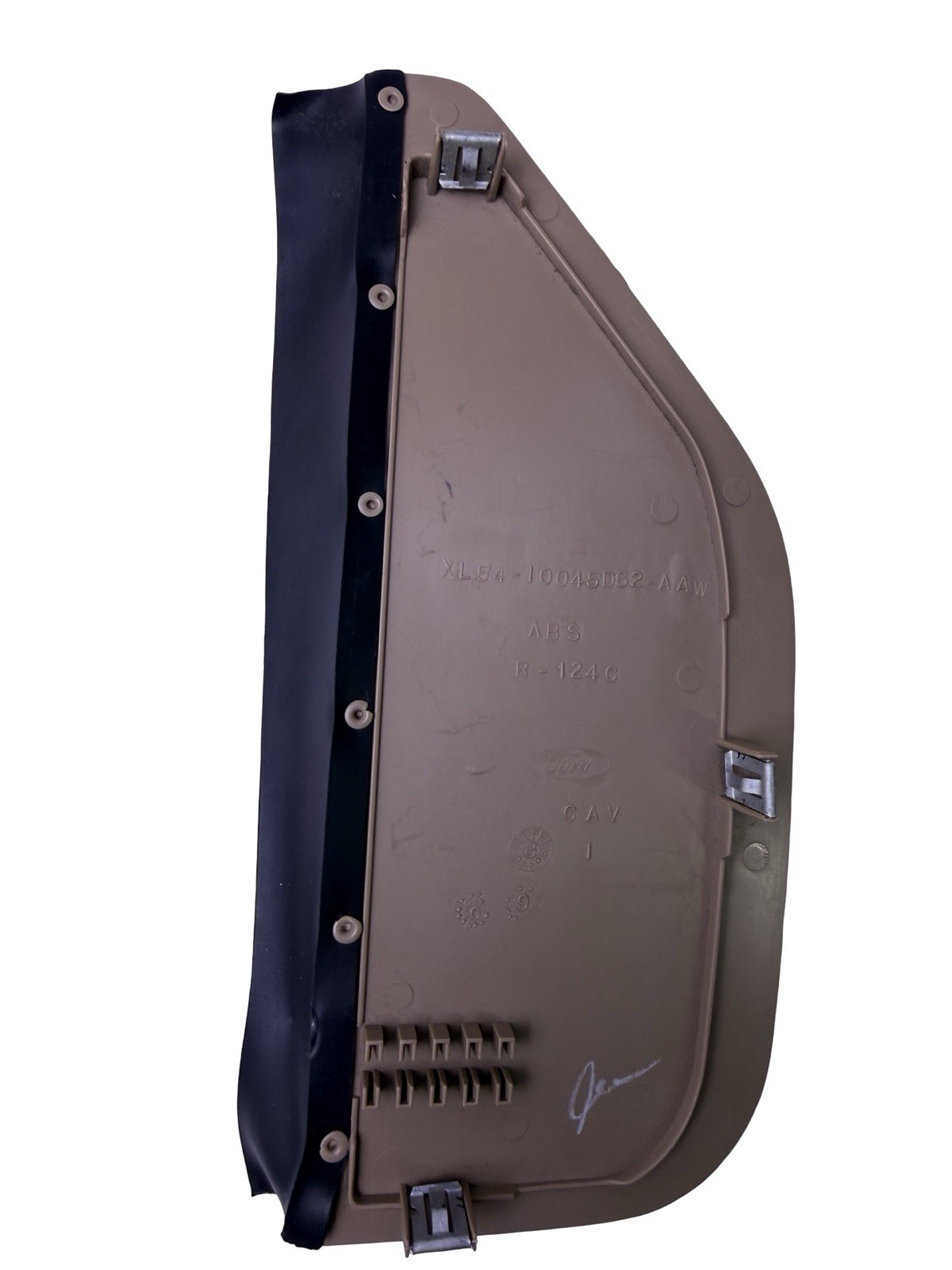

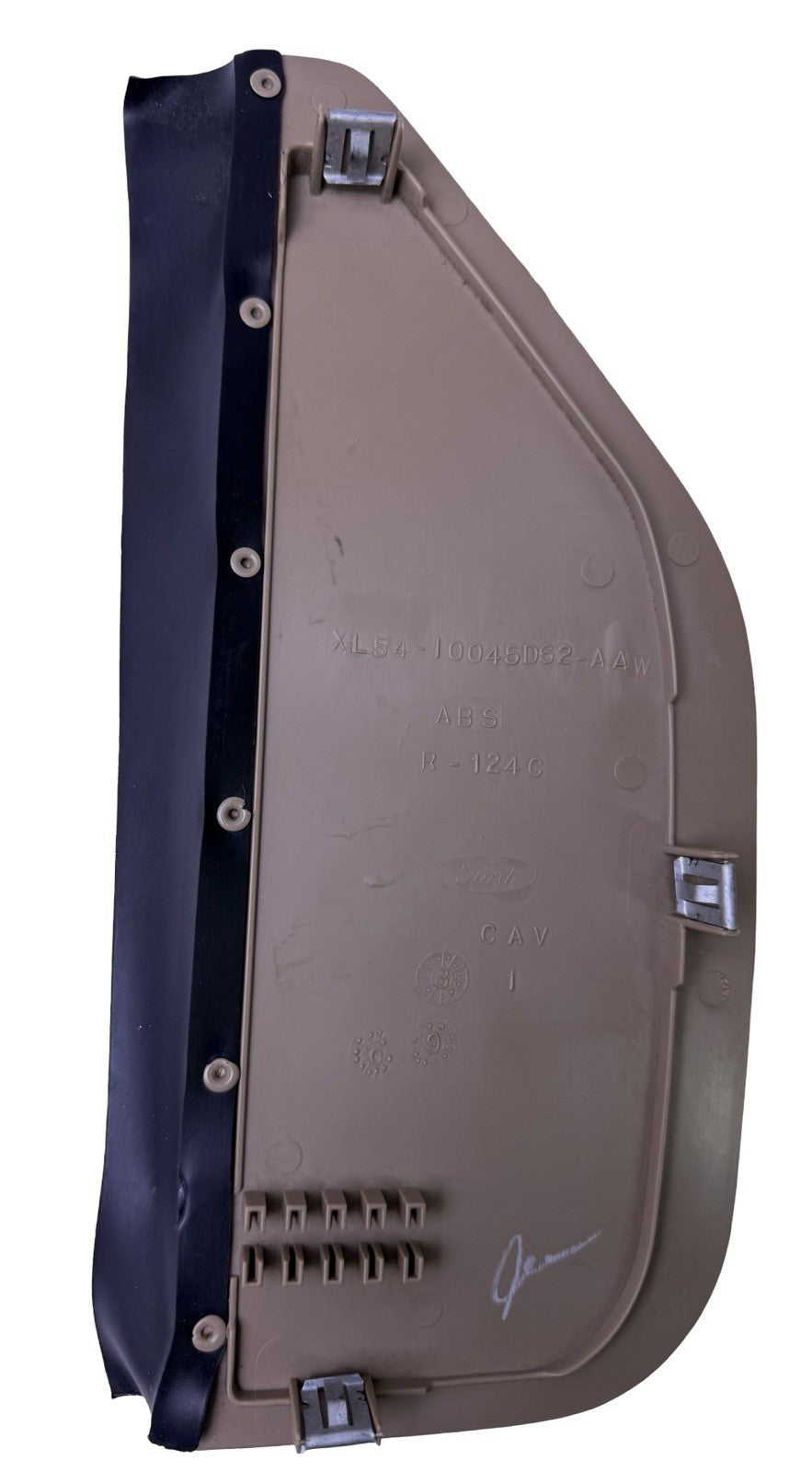

Genuine OEM LH Fuse Panel Cover Dark Gray XL54 10045D62 (XL5410045D62) for the 1995-2004 Ford Ranger. Direct-fit replacement.

From the shop

The fuse box on a '95–'04 Ranger is the nerve center for everything electrical — fuel pump, ignition, lights, accessories. When one fails, you get phantom electrical gremlins that are a pain to diagnose: circuits cutting out, relays not clicking, power dropping where it shouldn't. This one is OEM tested and ready to bolt in. Part number XL5410045D62AAW, direct fit for your generation Ranger. Ships same day Mon–Fri before 3pm EST. — Hubes

— Hubes

Vehicle fitment

Fits 1998–2003 Ford Ranger. Replaces OEM # XL5410045D62AAW.

Years Makes Models
1998–2003 Ford Ranger

Is this your problem?

A quick diagnostic from the shop — see the symptoms before you buy, so you order the right part once.

Read the full transcript
Symptoms of a bad tip-em and how to tell if your totally integrated power module is failing. If you drive a Chrysler Ram Jeep or Dodge, you're probably aware that these things are famous for causing absolute chaos when they go bad. So how do you know that your fuse box is actually your problem? The classic Chrysler symptom is a car that simply won't start because the internal fuel relay is cycling on and off, on and off and it ends up draining your battery overnight. You might also notice headlights that won't turn off, windshield wipers turning on all by themselves or power windows completely dying. After 30 years in OEM parts, I can tell you that these things punch way above their weight class as far as issues go. It's usually not a blown fuse, it's the internal circuit board layers and relays failing inside the box itself. So a visual check is usually not going to show you the damage. Dealer replacements are insanely expensive and known to be back ordered. Hit the link in my bio, check out my tested OEM fuse boxes and tip-em's or just comment your vehicle make and model and I'll hook you up with the correct replacement. [BLANK_AUDIO]

Specifications

Part Identification

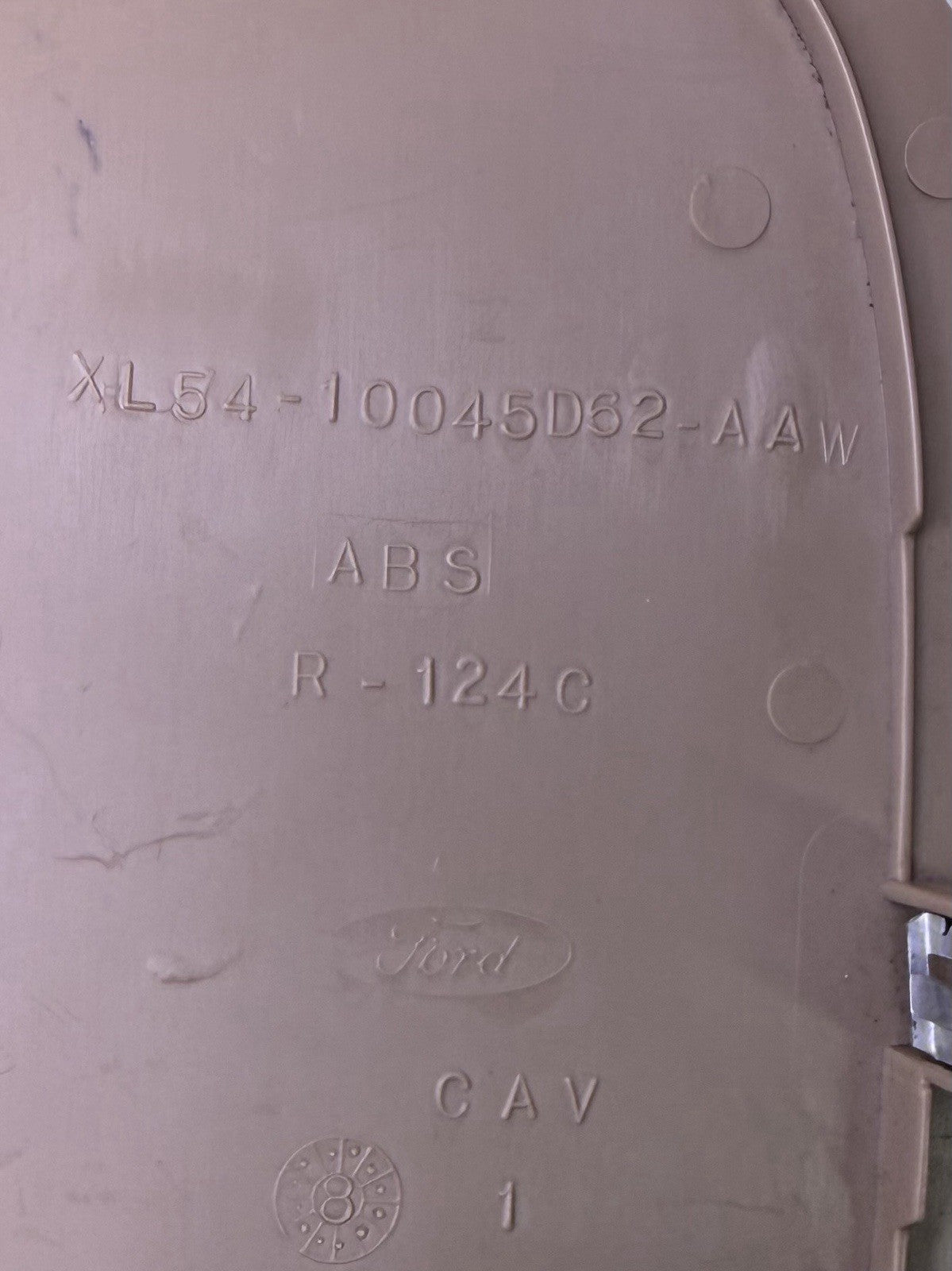

OEM Part Number
XL5410045D62AAW
Brand
Ford
Also Replaces
XL5410045D62
Also searched as
XL5410045D62AAW
Also Known As
Junction Box

Condition & Testing

Condition
OEM Tested

Specifications

Material
Plastic
Color
Tan
Finish
Matte
Placement
  • Front
  • Left
Features
  • N/A

Compliance

Country of Origin
United States

Frequently asked questions

Will this Fuse Box / TIPM fit my 1995-2004 Ford Ranger?
Yes — this is a direct-fit OEM replacement for the 1995-2004 Ford Ranger. Message us your VIN if you want us to double-check compatibility before you buy.
Is this part tested?
Yes. Every part is inspected and tested before listing. Grade A condition with a 30-day money-back guarantee.
Is this OEM or aftermarket?
100% OEM. Never aftermarket. We only sell genuine factory parts.
What is the OEM part number?
The OEM part number is XL5410045D62.
Can you verify fitment before I buy?
Absolutely — message us your VIN and we'll confirm this part fits your vehicle before you purchase.
What is your return policy?
30-day money-back guarantee on every order. Free return shipping if the part doesn't fit or match the description.
