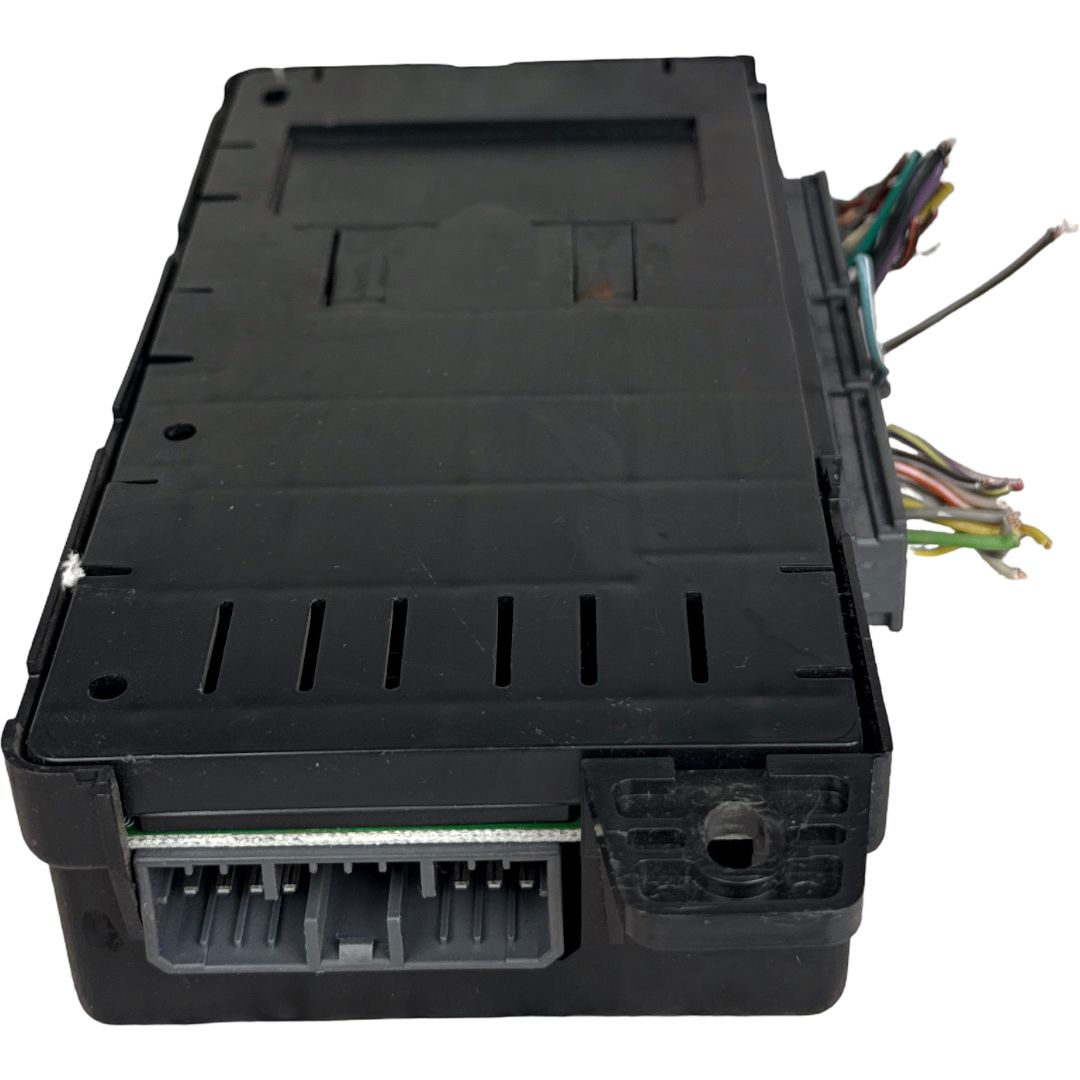

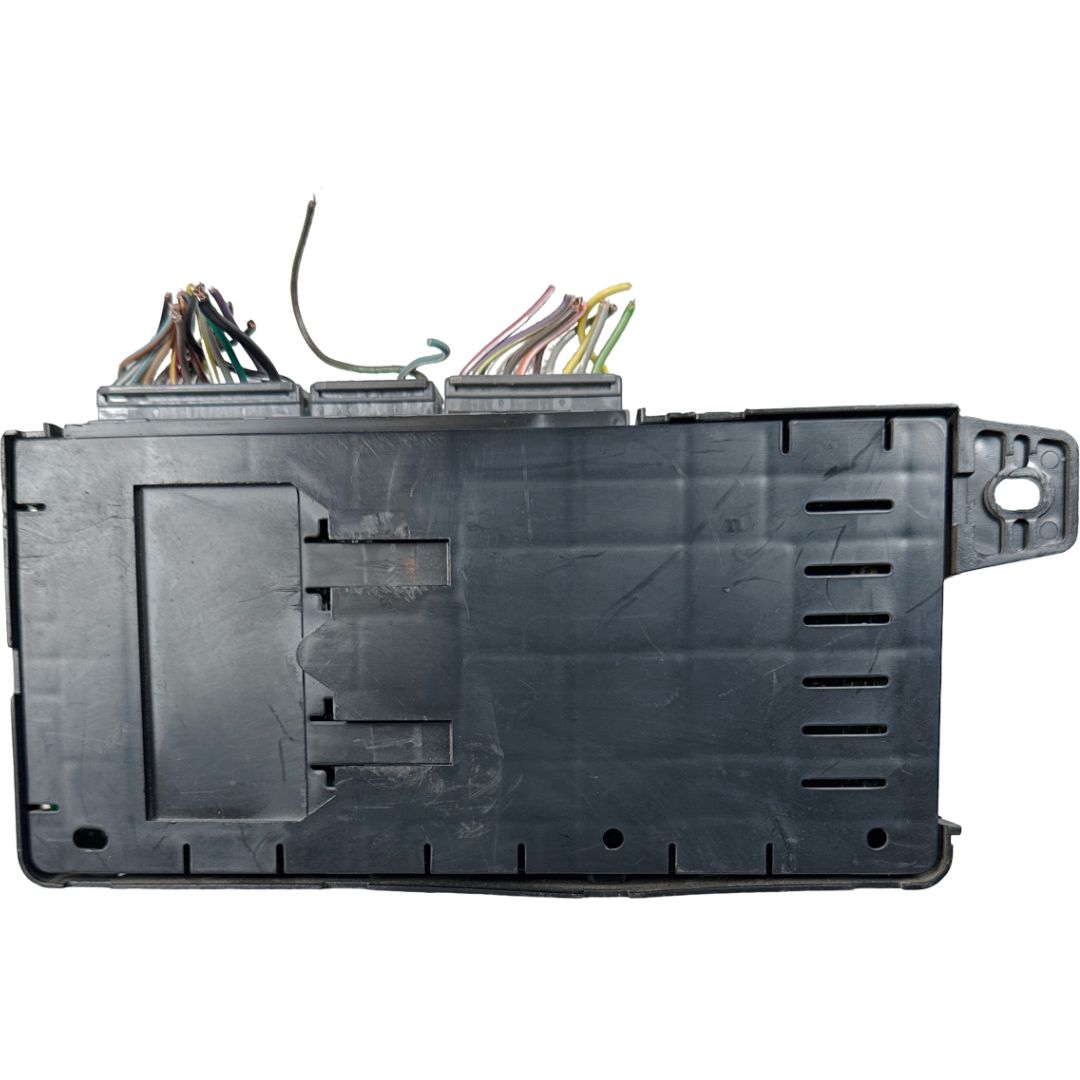

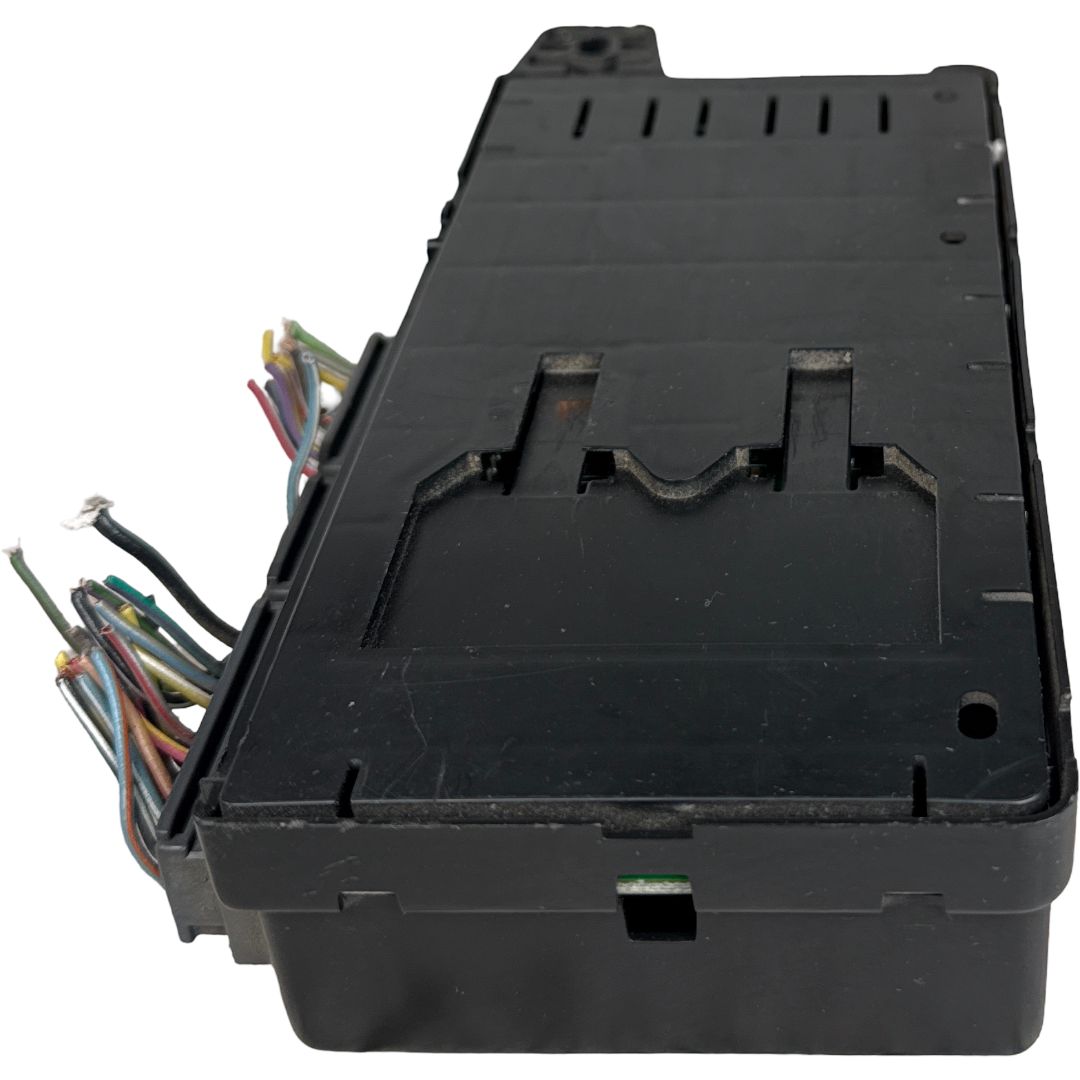

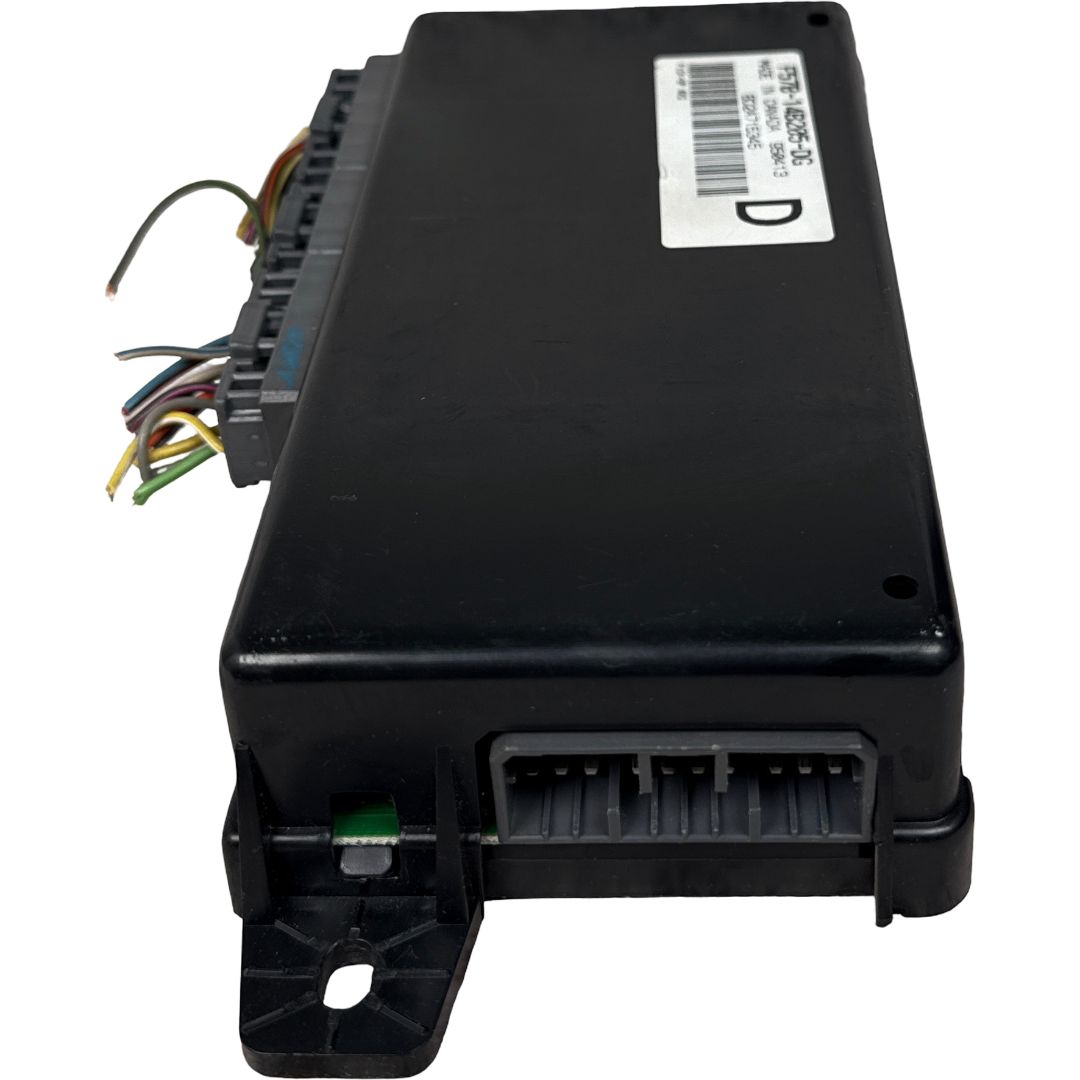

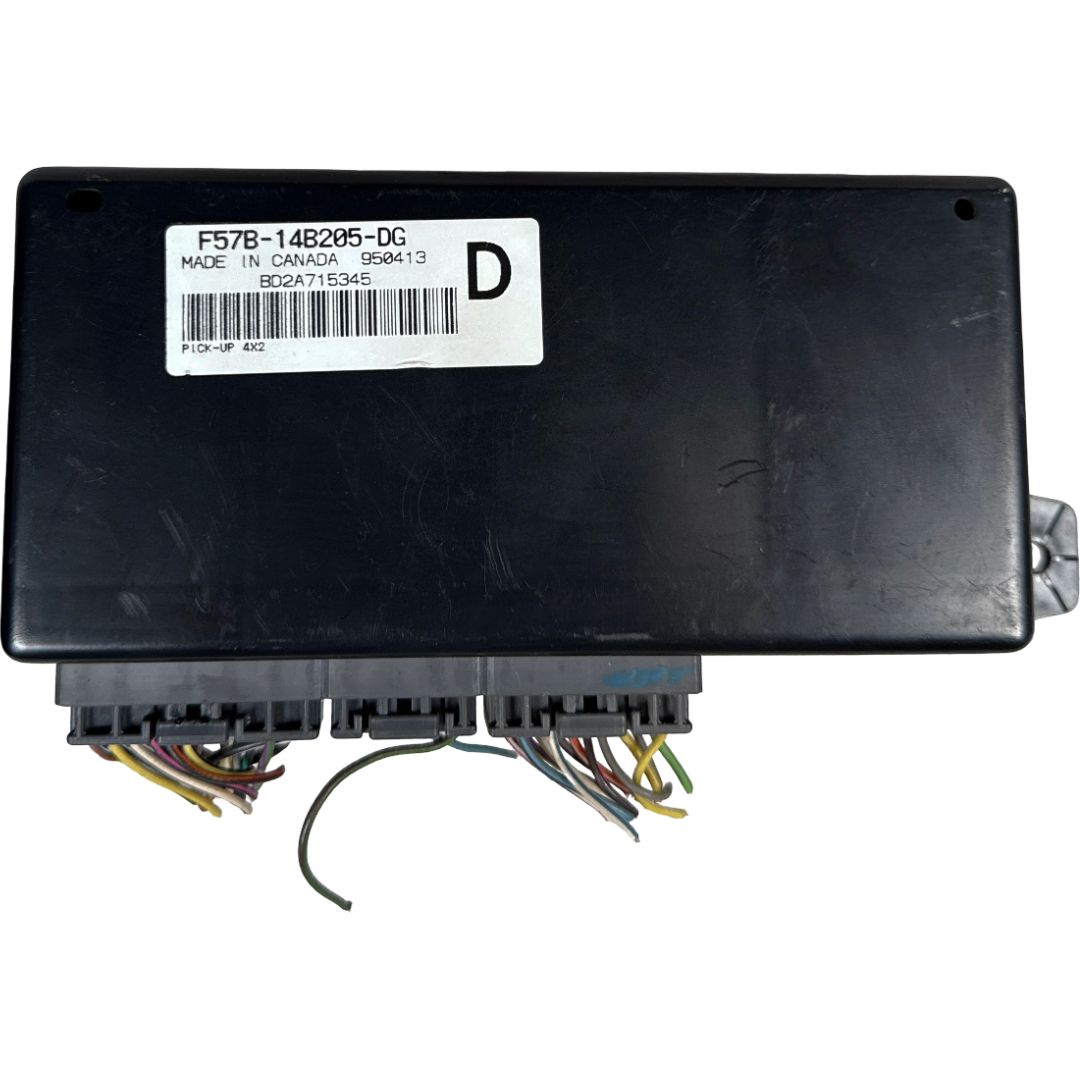

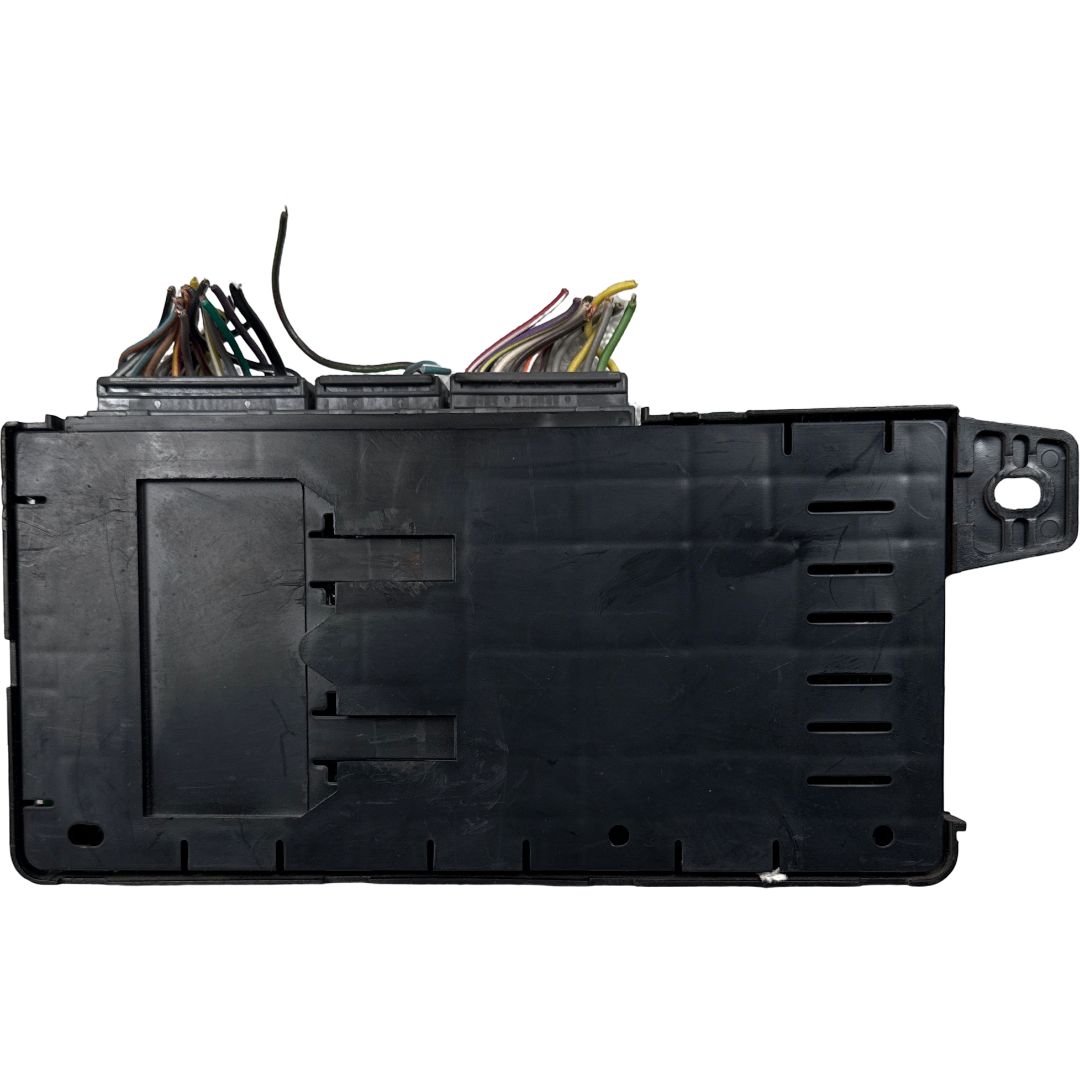

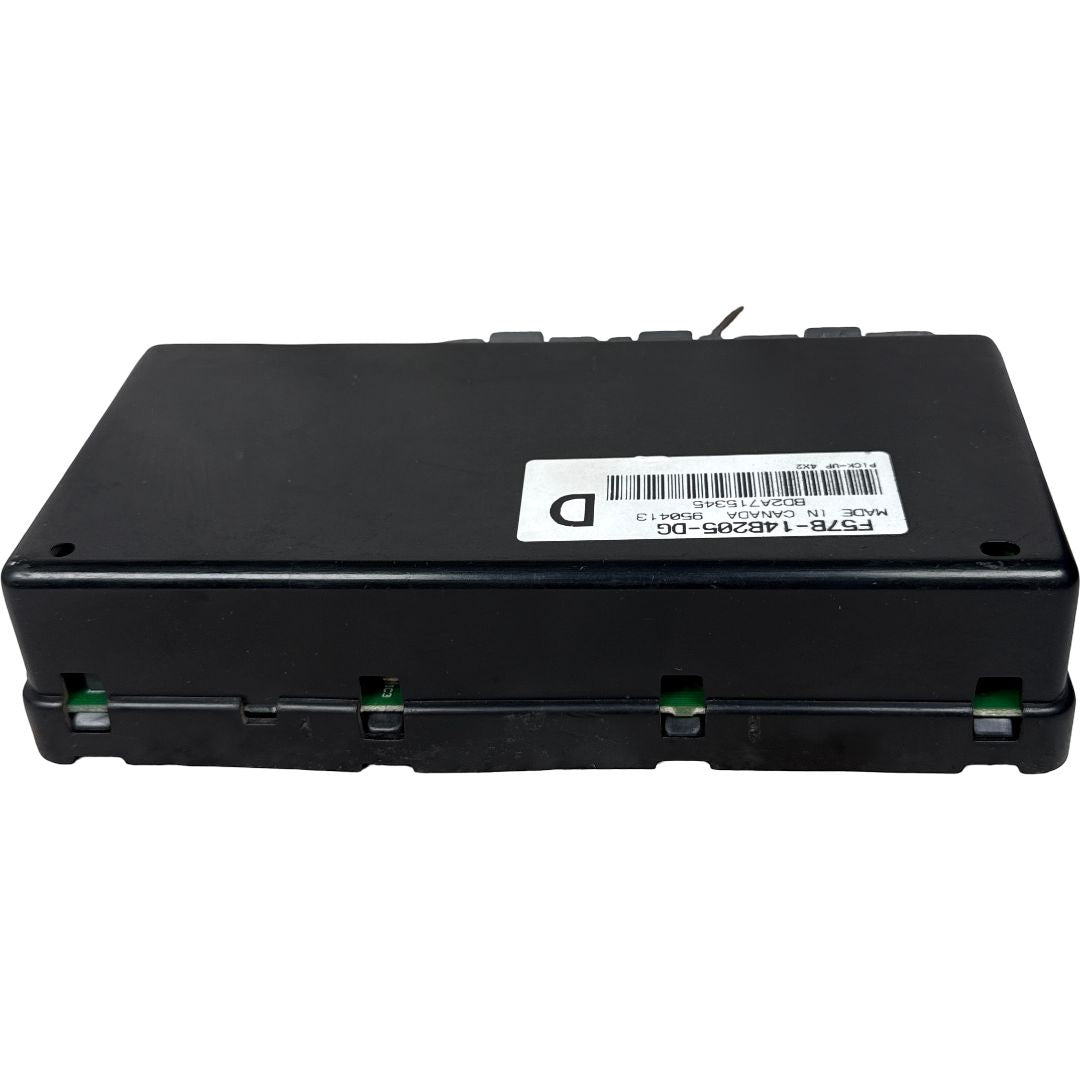

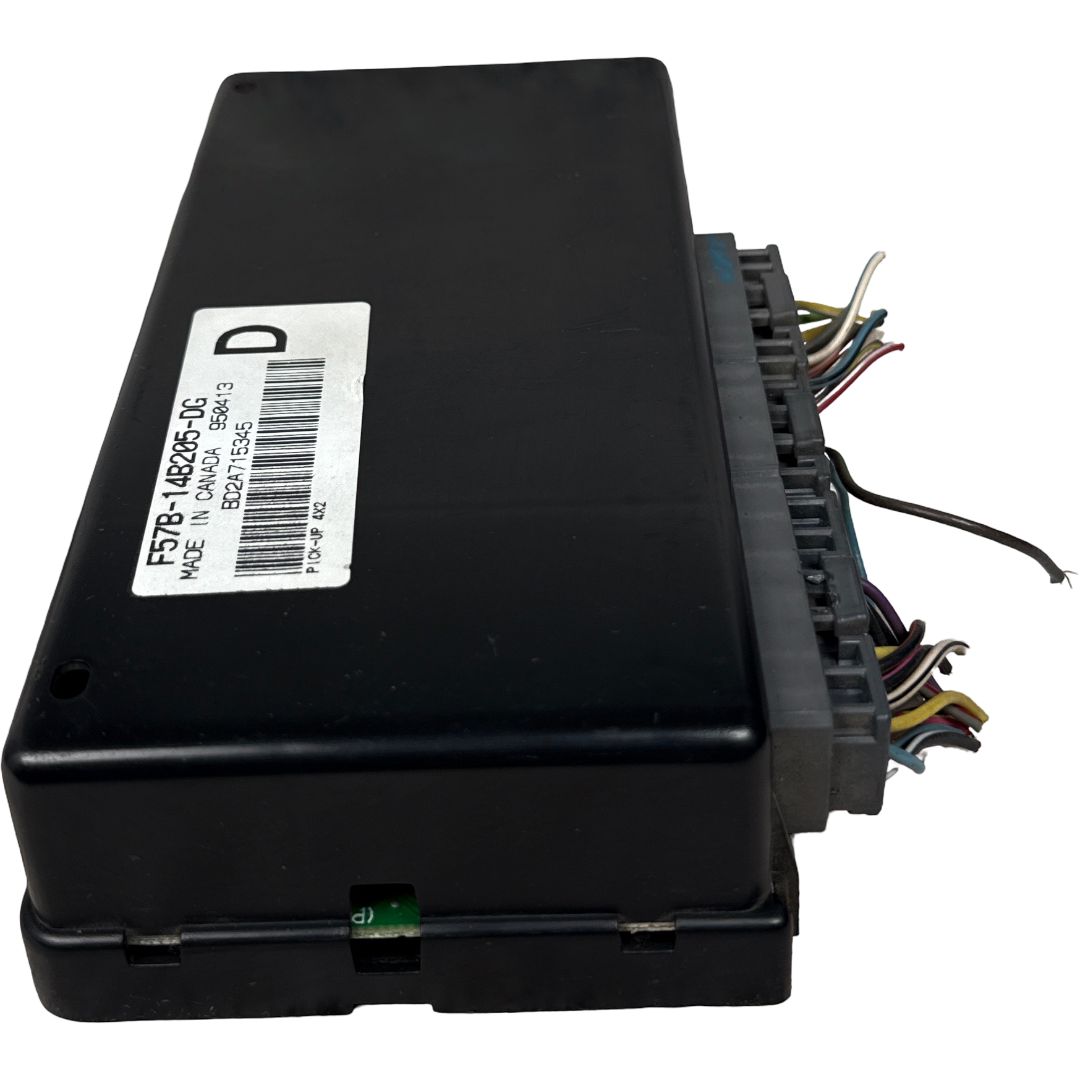

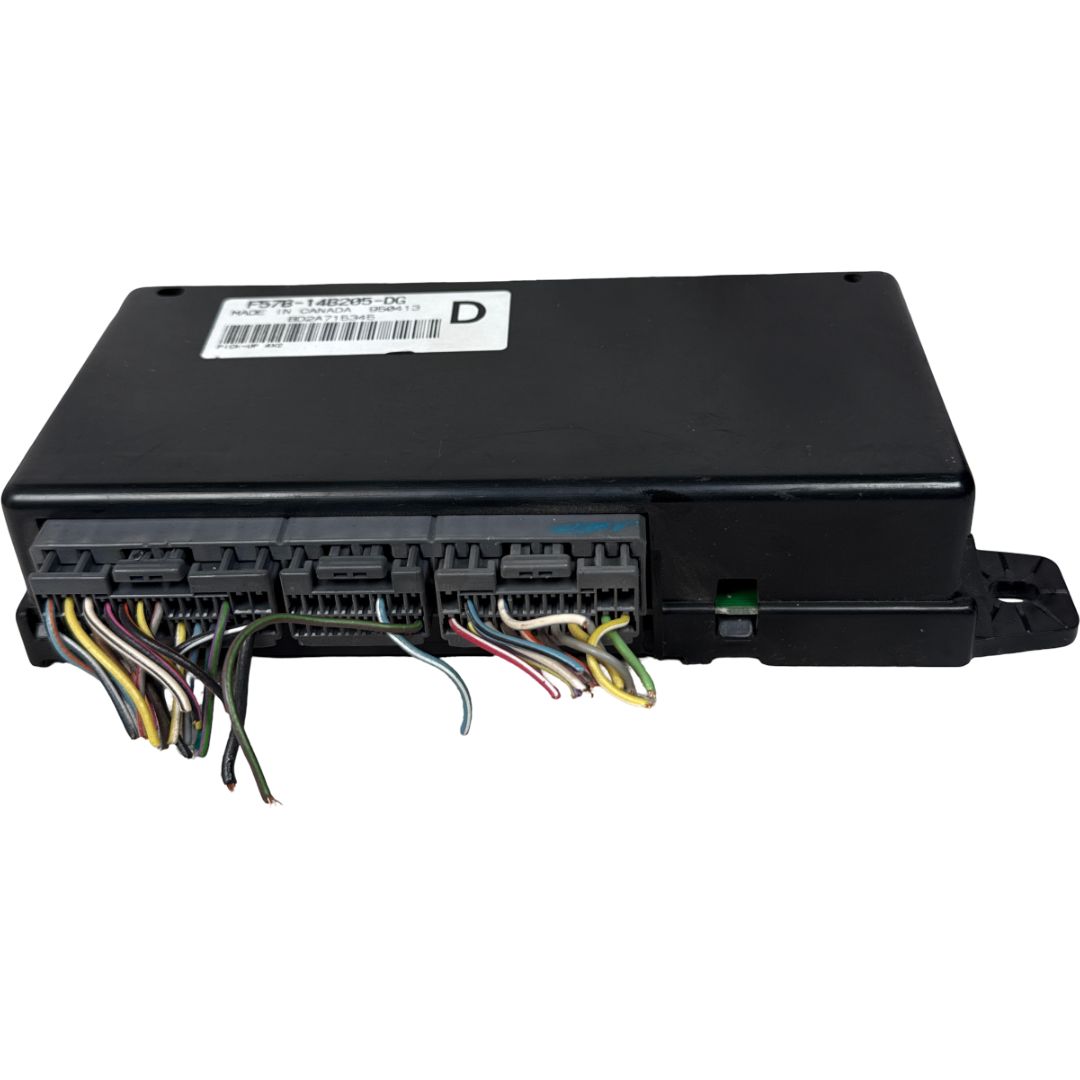

1995-1996 Ford Ranger Mazda B-Series GEM Module F57B-14B205-DG OEM
F57B-14B205-DG
VIN programming required after install
This module needs VIN programming after install. A dealer or locksmith with the right scan tool can do it. Not sure your installer can program? Message us first — we'll help you confirm.
Tested functional. Cleaned.
This OEM B-Series GEM (Generic Electronic Module) fits 1995–1996 Ford Ranger, Mazda B2300, Mazda B3000, and Mazda B4000, controlling body electrical functions such as wipers, lighting, and accessories. Part number F57B-14B205-DG; interchanges with F57B-14B205-DD and F57B-14B205-DH. Tested functional, cleaned, and programming may be required.
From the shop
This module runs the accessories that don't touch the engine at all — wipers, washers, power windows and locks, door chimes, keyless entry, interior lights. Mounts front, center, upper. When it's on its way out, those systems tend to act up as a group instead of one at a time, so if two or three quit around the same week, this is worth a look. Tested functional. Cleaned. Part numbers: F57B-14B205-DG, interchange F57B-14B205-DD, F57B-14B205-DH. Fits 1995–1996 Ford Ranger, Mazda B2300, B3000 and B4000. This unit requires programming to your vehicle after installation. Ships Mon–Fri before 3pm EST. — Hubes
— Hubes
Vehicle fitment
Fits 1995–1996 Ford Ranger; 1995–1996 Mazda B2300; 1995–1996 Mazda B3000; 1995–1996 Mazda B4000. Replaces OEM # F57B-14B205-DG.
| Years | Makes | Models |
|---|---|---|
| 1995–1996 | Ford | Ranger |
| 1995–1996 | Mazda | B2300 |
| 1995–1996 | Mazda | B3000 |
| 1995–1996 | Mazda | B4000 |
Please note: No-ESOF trucks with factory keyless entry: 2WD or floor-shift 4x4 only — will NOT work with dash-switch (ESOF) transfer case. Crosses only with F57B-14B205-DD/-DH. GEM modules are option-specific — match your part number exactly; dealer configuration may be required after replacement.
Is this your problem?
A quick diagnostic from the shop — see the symptoms before you buy, so you order the right part once.
Read the full transcript
Specifications
Part Identification

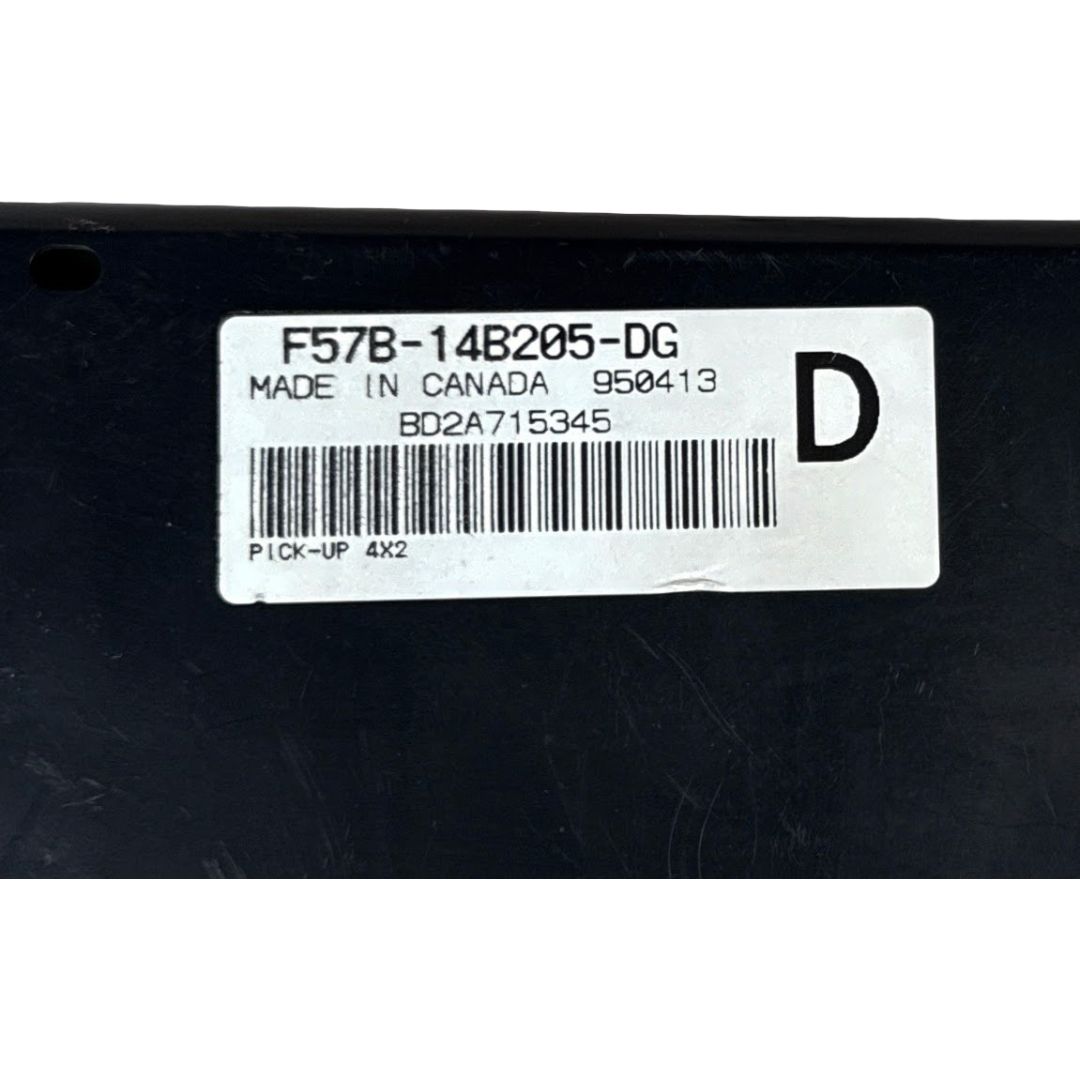

- OEM Part Number
F57B-14B205-DG- Brand
- Ford
- Also Replaces
F57B-14B205-DD,F57B-14B205-DH- Also searched as
F57B14B205DG- Also Known As
- Ford GEM, Generic Electronic Module
Condition & Testing
- Condition
- Used
Specifications
- Material
- Plastic
- Connector Type
- multi colored rectangular pin receptacle blocks
- Terminal Type
- Pin
- Terminal Count
- 34
- Placement
- Front
- Center
- Upper
- What's Included
- Pigtails
- Dimensions
- 6.0" H × 10.0" L × 6.0" W · 24.0 oz
Compliance
- Country of Origin
- Canada
Frequently asked questions
Will this GEM Multifunction Module fit my 1995-1996 Ford Ranger, 1995-1996 Mazda B2300, 1995-1996 Mazda B3000 and 1995-1996 Mazda B4000?
Is this part tested?
Is this OEM or aftermarket?
What is the OEM part number?
Can you verify fitment before I buy?
What is your return policy?
What is this GEM Multifunction Module also called?
What other part numbers does this GEM Multifunction Module fit?
