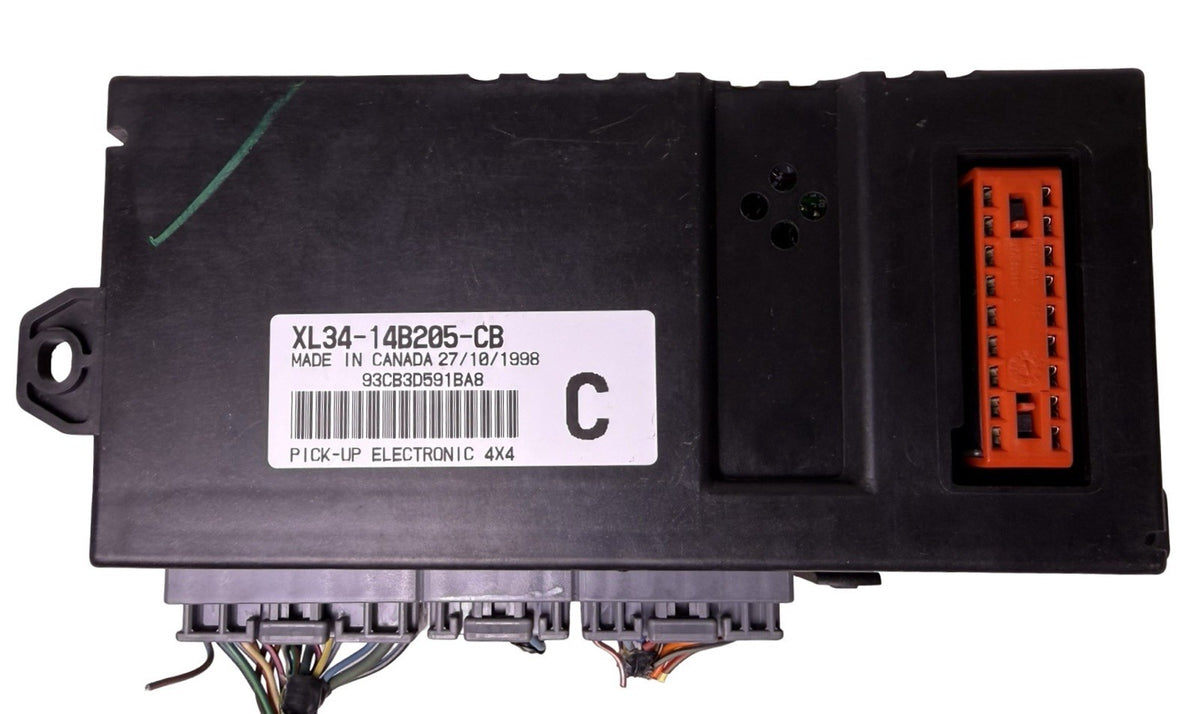

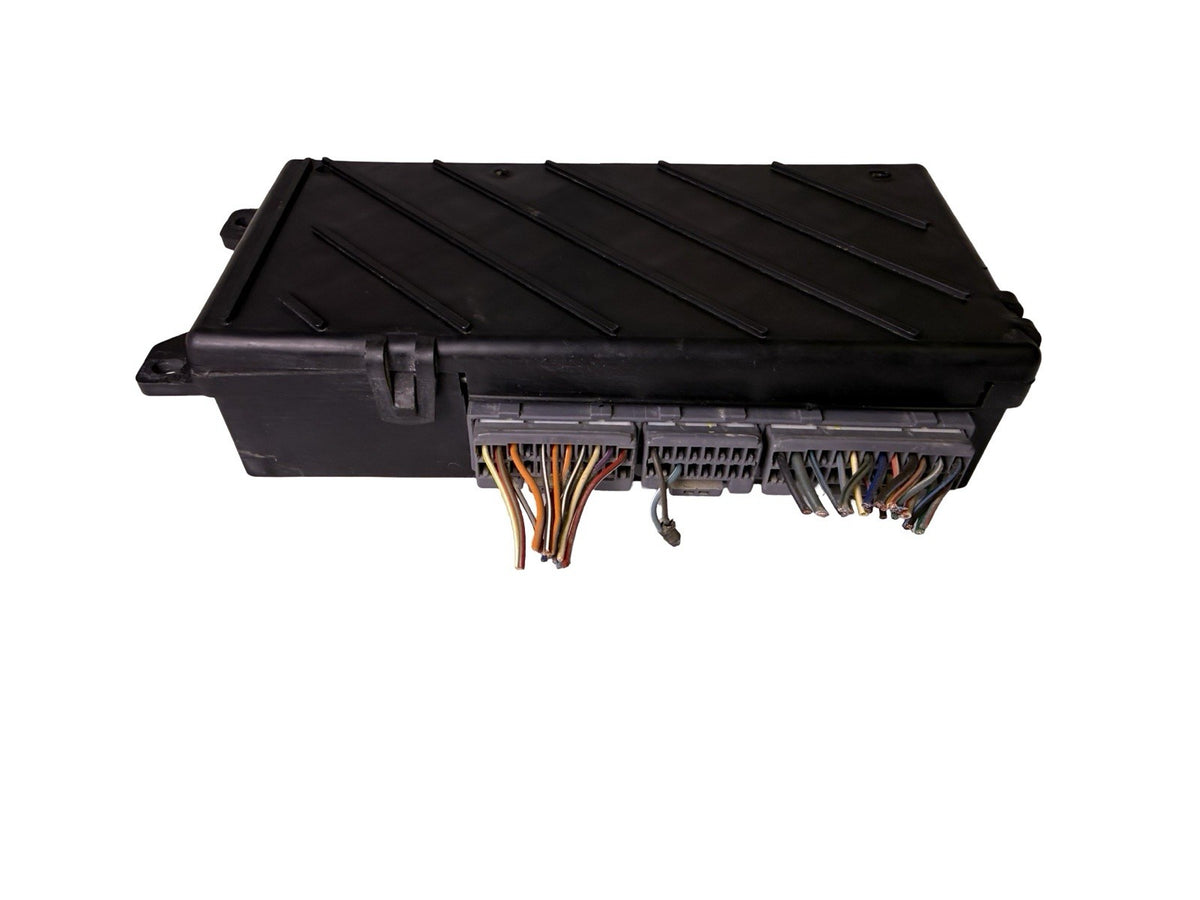

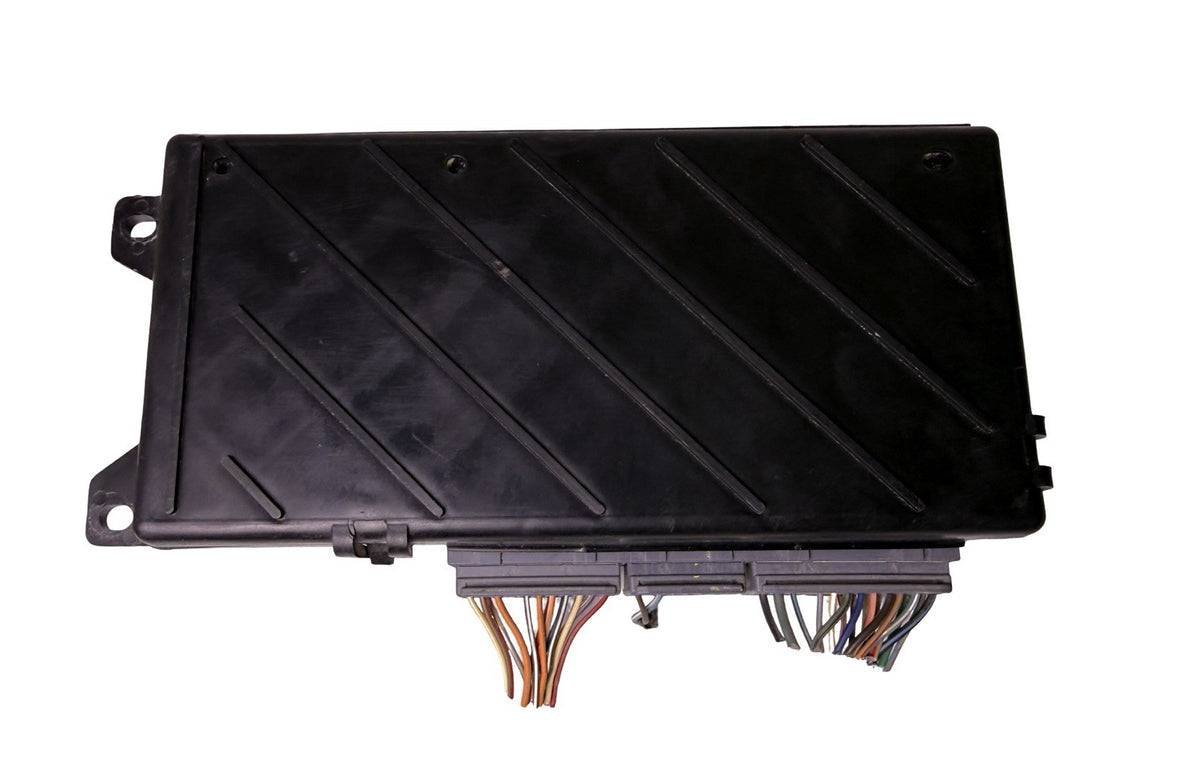

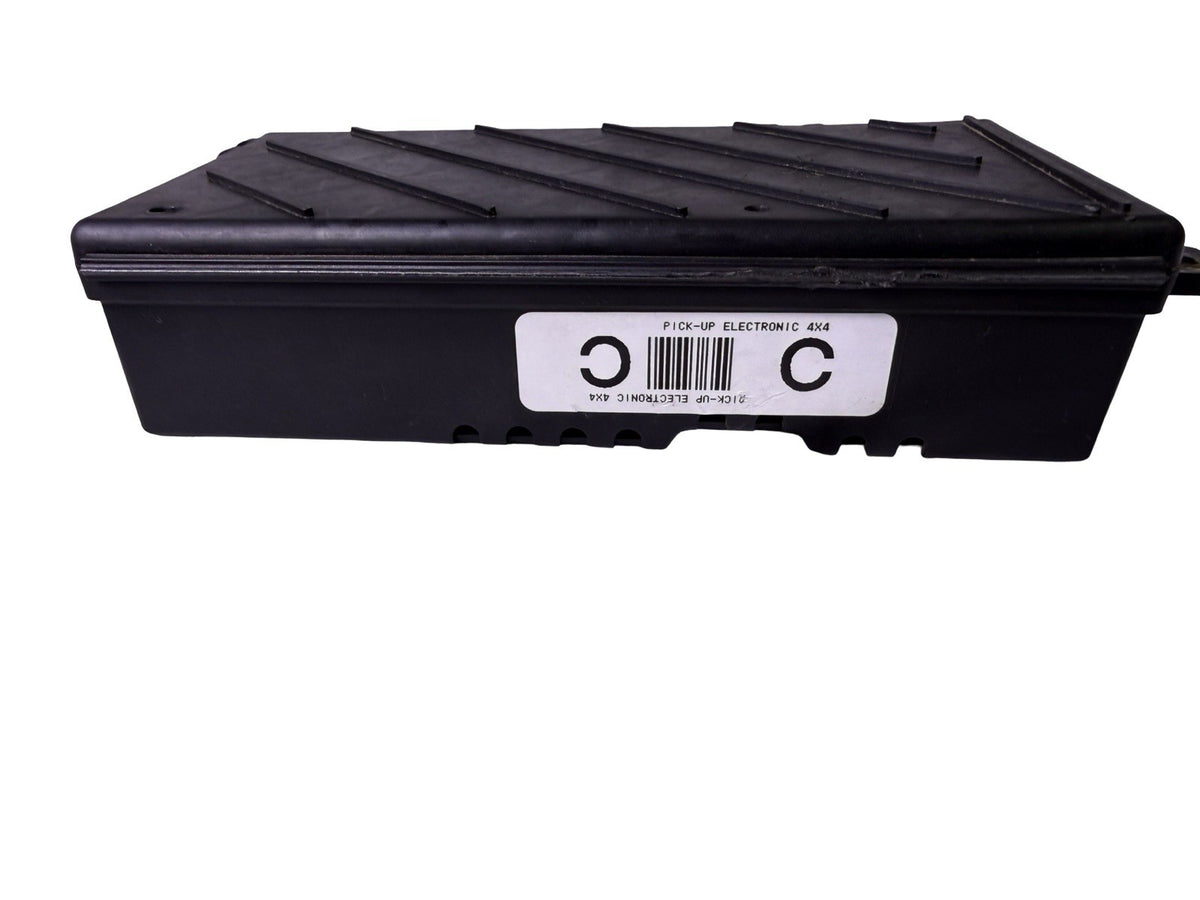

OEM 1999-2001 Ford F-150 GEM Module XL34-14B205-CB — Part# XL34-14B205-CBF-150 GEM Module XL34-14B205-CB for 1999-2001 Ford — XL34-14B205-CBF-150 GEM Module XL34-14B205-CB for 1999-2001 Ford — photo 3F-150 GEM Module XL34-14B205-CB for 1999-2001 Ford — photo 4
GEM Module

1999-2004 Ford F-150 4x4 ESOF GEM Module XL34-14B205-CB OEM

OEM Part Number
XL34-14B205-CB
by Ford·MPN XL3414B205CB
$80.99
Sold out — sourcing in progress
Will this fit your vehicle? See the fitment table below to check.
BEFORE YOU BUY

VIN programming required after install

This module needs VIN programming after install. A dealer or locksmith with the right scan tool can do it. Not sure your installer can program? Message us first — we'll help you confirm.

PART CONDITION

Tested functional. Cleaned.

Other Generic Electronic Modules (GEM) in stock now

Can’t wait? Ask us to source this exact part →
5.0 (25)
Free Shipping — US and US territories

Programming required — this module must be programmed to the receiving vehicle. This is a genuine OEM 4x4 ESOF GEM Module fitting 1999–2003 Ford F-150, Ford F-150 Heritage, and Ford F-250 — the front-mounted electronic module that controls body electrical systems and Electronic Shift-On-the-Fly four-wheel-drive engagement. OEM part XL34-14B205-CB, tested functional, and cleaned. Programming to the receiving vehicle is required.

From the shop

The Body Control Module on the '99–'01 Expedition handles power windows, locks, interior lighting, and a handful of other electrical functions that don't seem related until the BCM fails and half of them stop working at once. This one is OEM tested. Ships Mon–Fri same day before 3pm EST. — Hubes

— Hubes

Vehicle fitment

Fits 1999–2003 Ford F-150; 2004 Ford F-150 Heritage; 1999 Ford F-250. Replaces OEM # XL34-14B205-CB.

Years Makes Models
1999–2003 Ford F-150
2004 Ford F-150 Heritage
1999 Ford F-250

Please note: 4x4 ESOF trucks with power group. Dealer pools XL3Z-14B205-CA/CB/CD revisions. F-250 = 1999 Light Duty ONLY (Super Duty uses F81Z). GEM modules are option-specific — match your part number exactly; dealer configuration may be required after replacement.

Is this your problem?

A quick diagnostic from the shop — see the symptoms before you buy, so you order the right part once.

Read the full transcript
Symptoms of a bad gem module on your late 90s to early 2004 truck. If you're experiencing any of the following symptoms on your general electronic module, the generic electronic module on your vehicle's most likely fried. Number one, ghost accessories. Your windshield wipers turn on by themselves. Your radio stays on after you turn the vehicle off and pull your key out. Number two, 4x4 failure. You flip the switch, nothing happens, or you just hear a rapid clicking sound deep in the dashboard. battery drain. A shorted gem will keep your network awake and will drain a brand new battery overnight. Nine out of ten times this is caused by leaking windshield. The water actually drips down onto your gem module. So use the Fitment tool on my website, drop your make model, gear in the comments, and I'll help you diagnose the issue and we'll get you set up with a replacement gem.

Specifications

Part Identification

OEM Part Number
XL34-14B205-CB
Brand
Ford
Also Replaces
XL3Z-14B205-CA, XL3Z-14B205-CB, XL3Z-14B205-CD
Also searched as
XL3414B205CB
Also Known As
Generic Electronic Module, Ford GEM

Condition & Testing

Condition
OEM Tested

Specifications

Material
Plastic
Connector Type
Female
Terminal Type
Pin
Placement
  • Front
Length
8.0

Compliance

Country of Origin
United States

Frequently asked questions

Will this GEM Module fit my 1999-2003 Ford F-150, 2004 Ford F-150 Heritage and 1999 Ford F-250?
Yes — this is a direct-fit OEM replacement for the 1999-2003 Ford F-150, 2004 Ford F-150 Heritage and 1999 Ford F-250. Message us your VIN if you want us to double-check compatibility before you buy.
Is this part tested?
Yes. Every part is inspected and tested before listing. Grade A condition with a 30-day money-back guarantee.
Is this OEM or aftermarket?
100% OEM. Never aftermarket. We only sell genuine factory parts.
What is the OEM part number?
The OEM part number is XL3414B205CB. Interchange/alternate numbers: XL3414B205.
Can you verify fitment before I buy?
Absolutely — message us your VIN and we'll confirm this part fits your vehicle before you purchase.
What is your return policy?
30-day money-back guarantee on every order. Free return shipping if the part doesn't fit or match the description.
