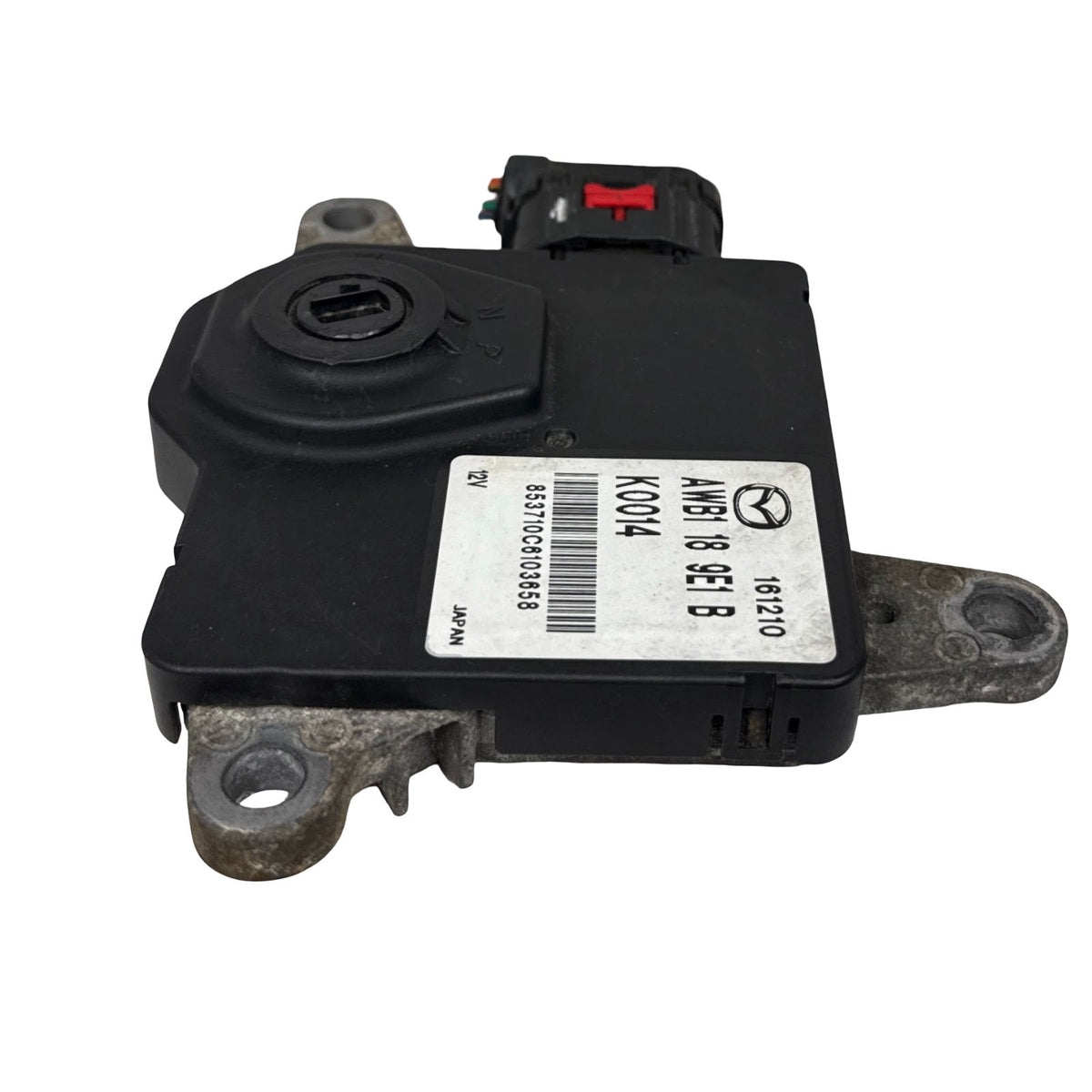

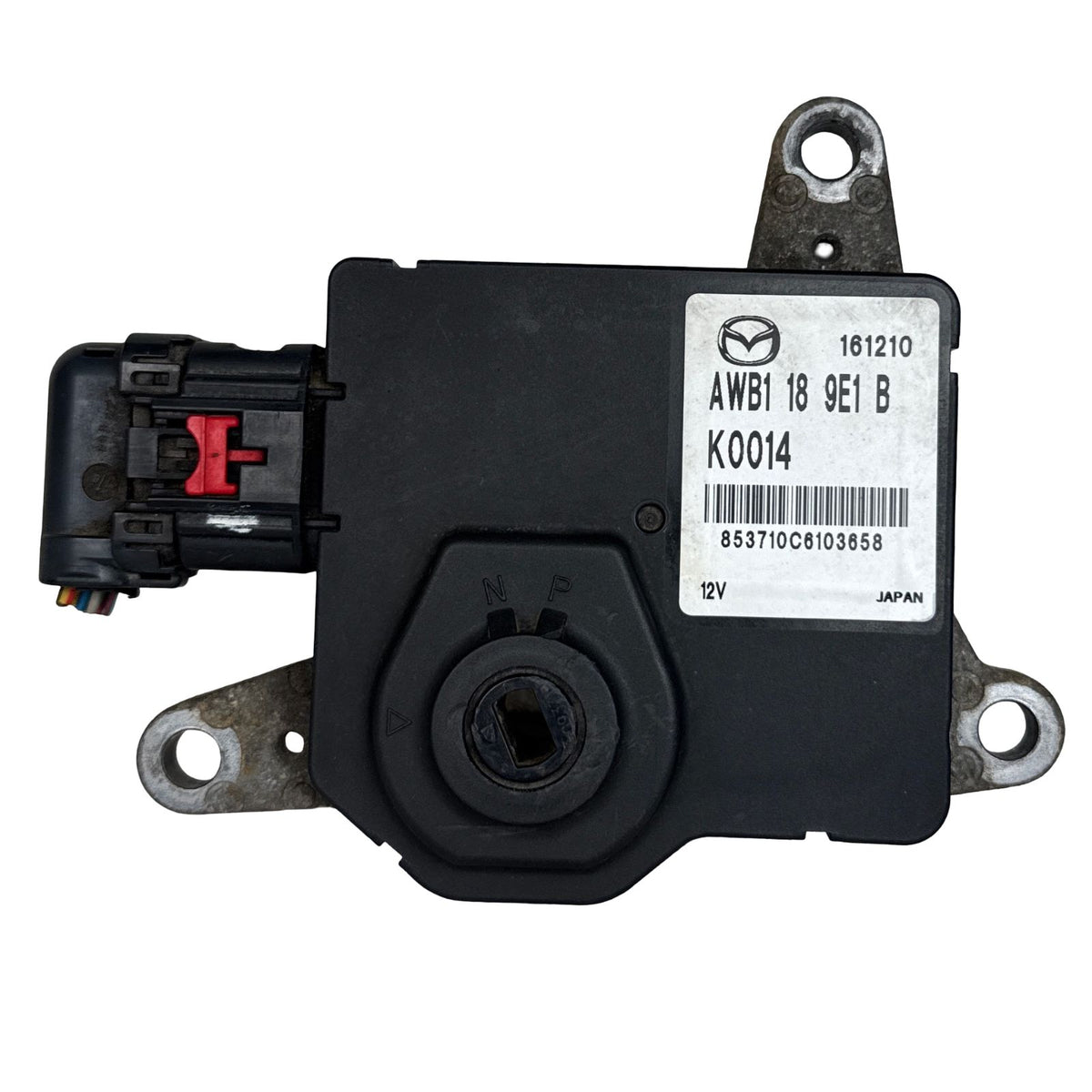

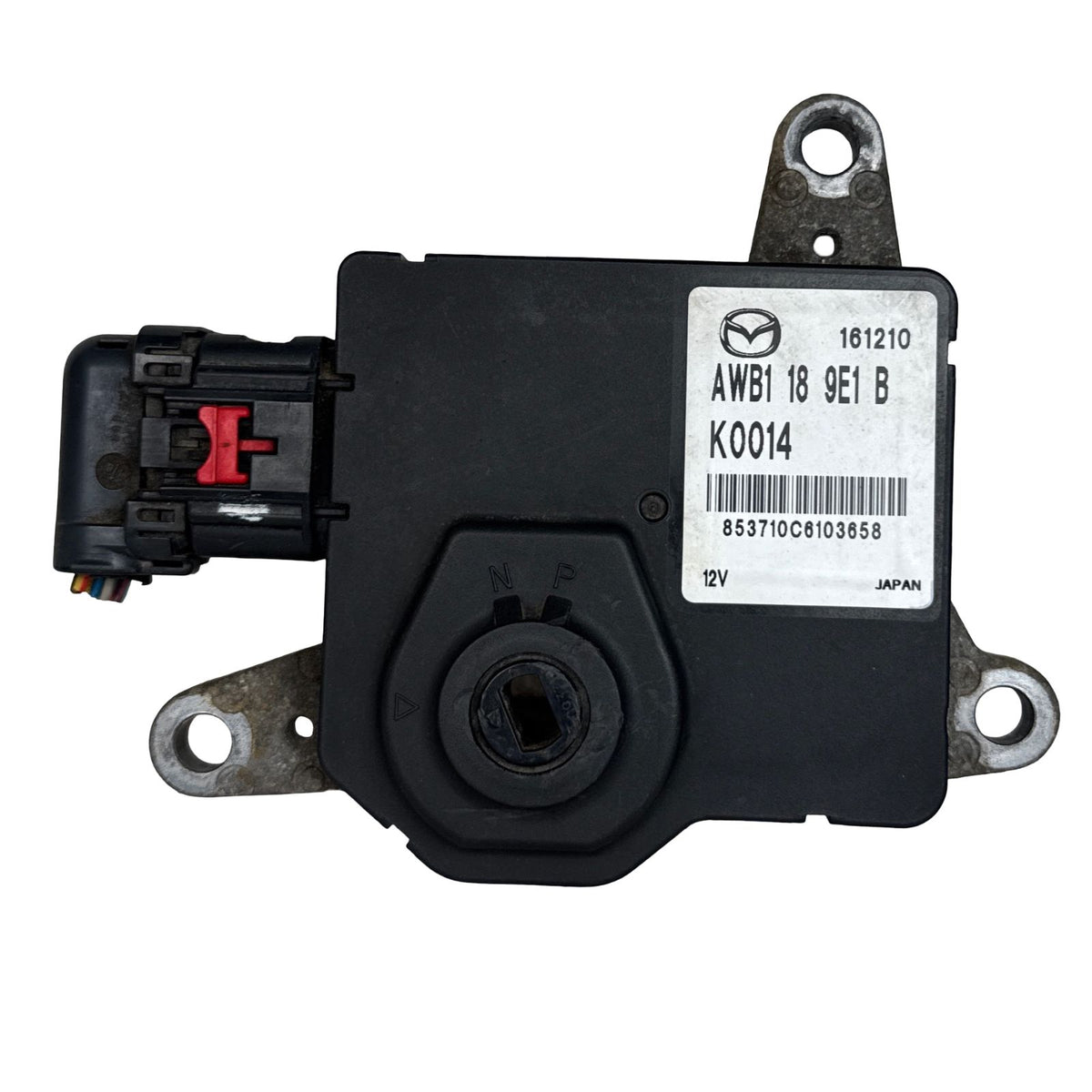

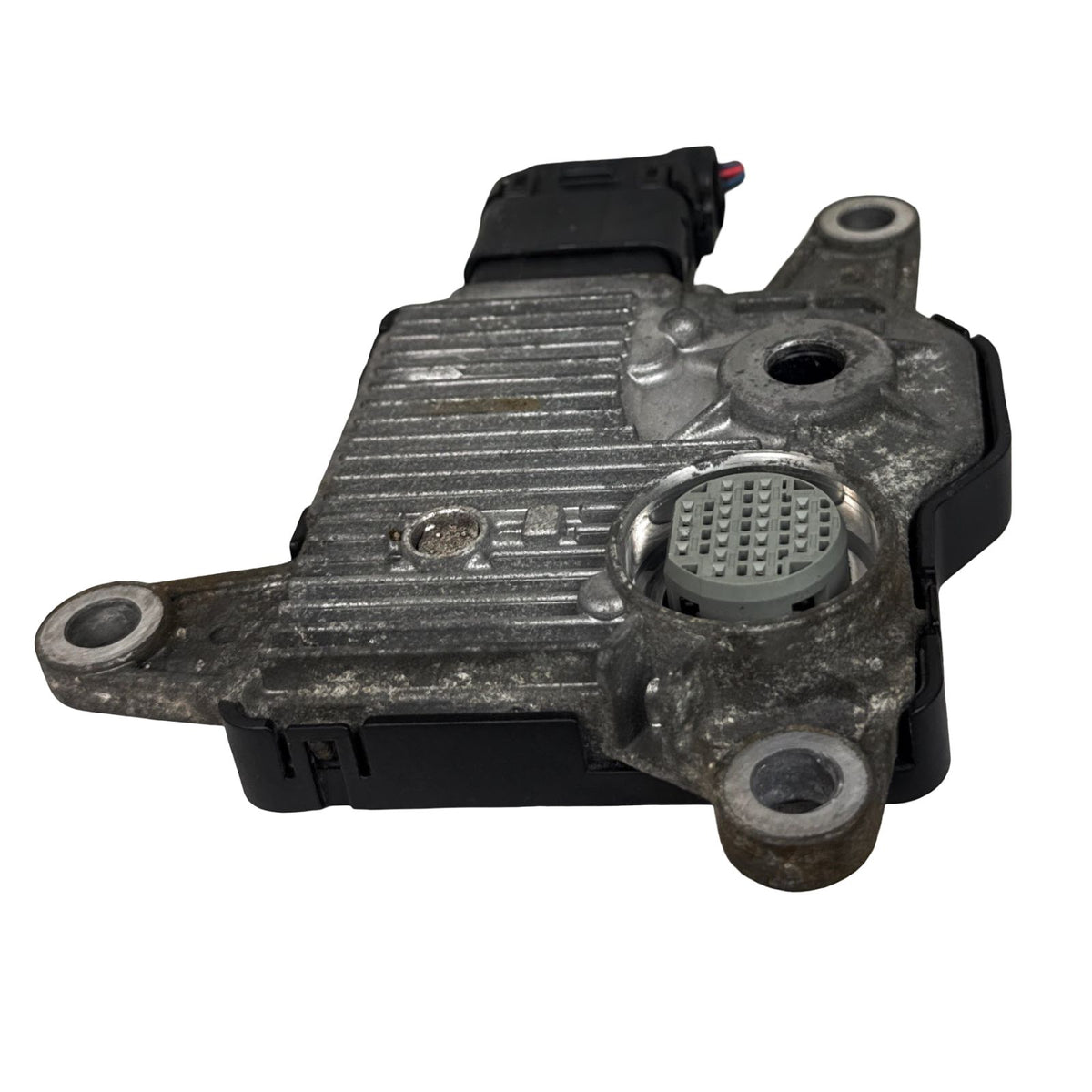

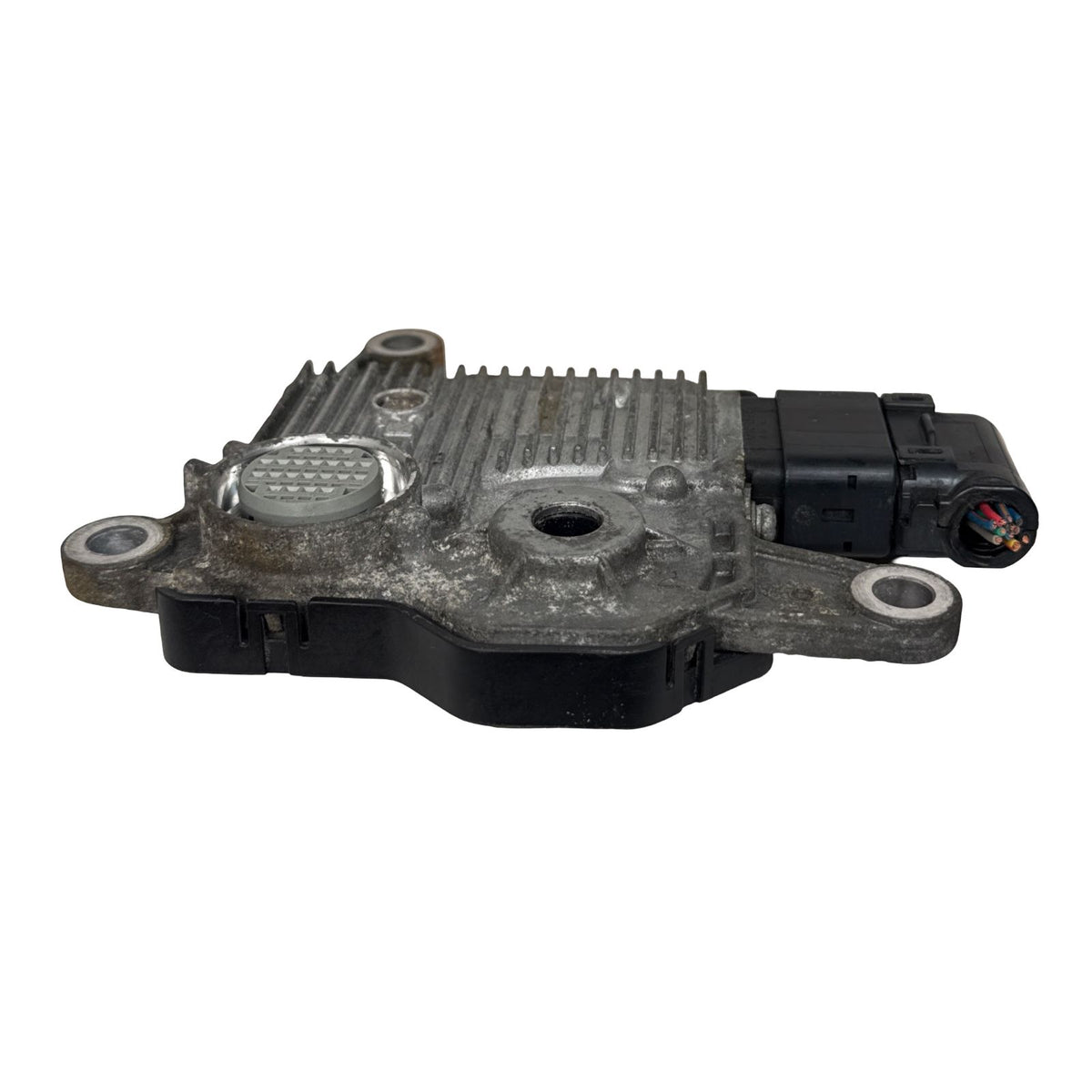

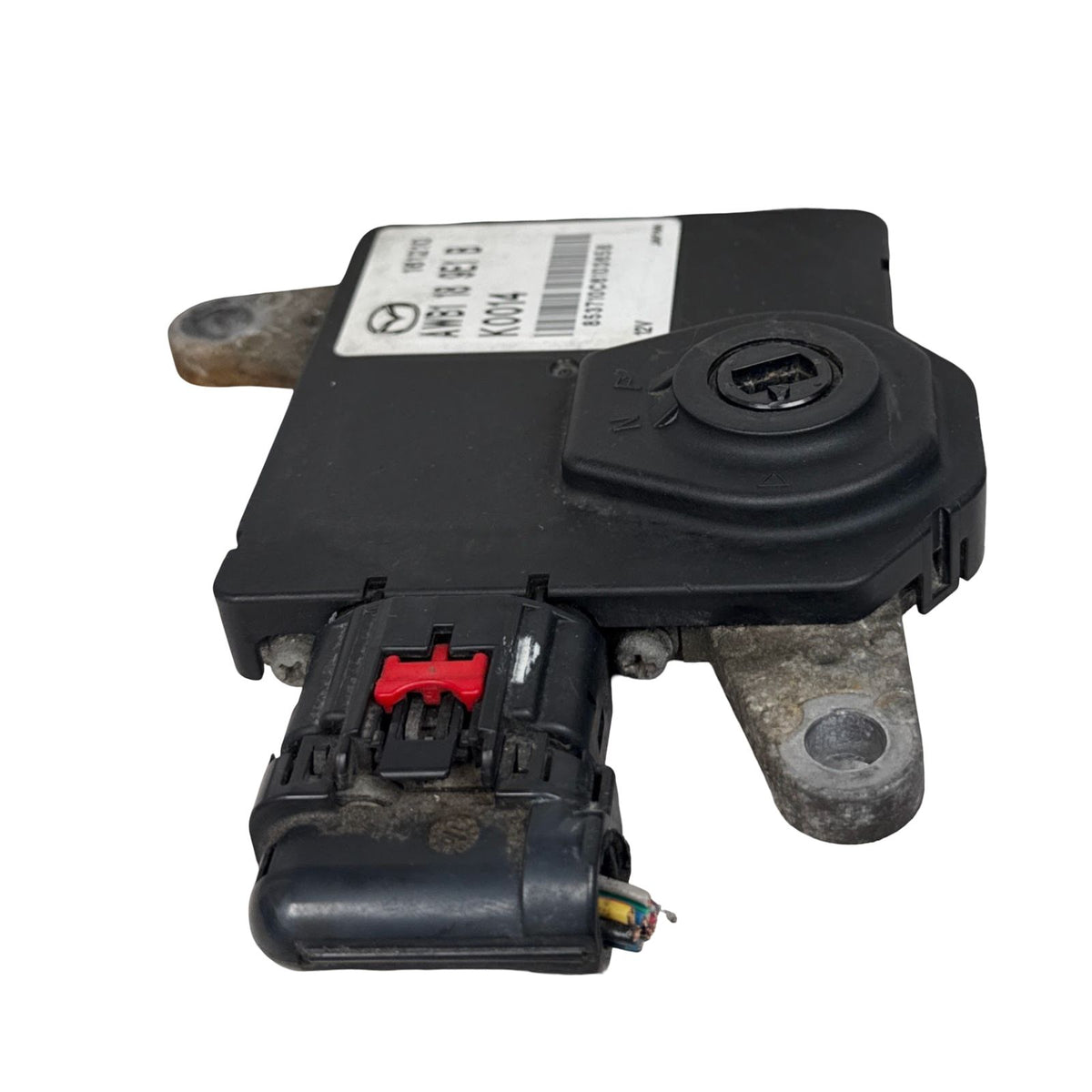

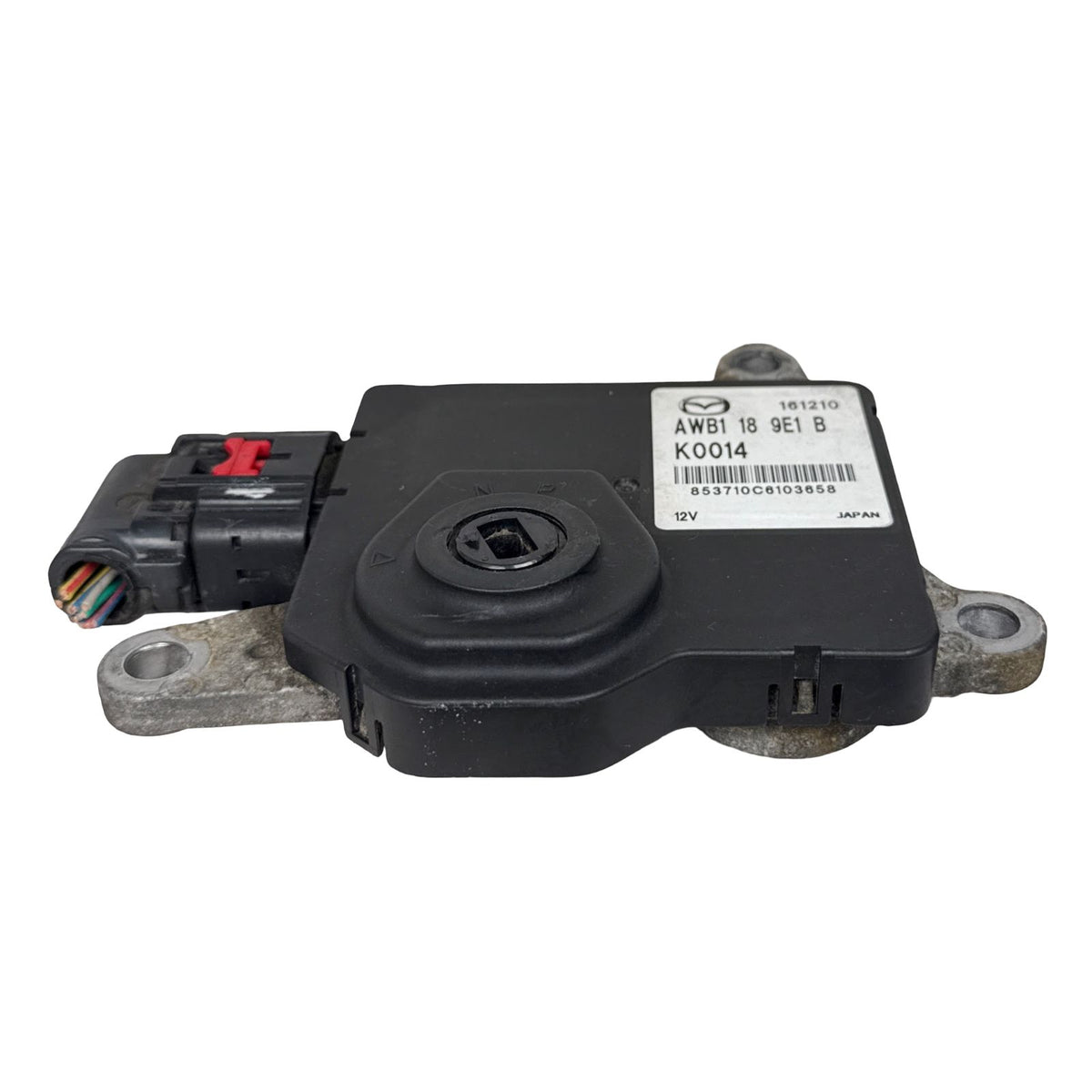

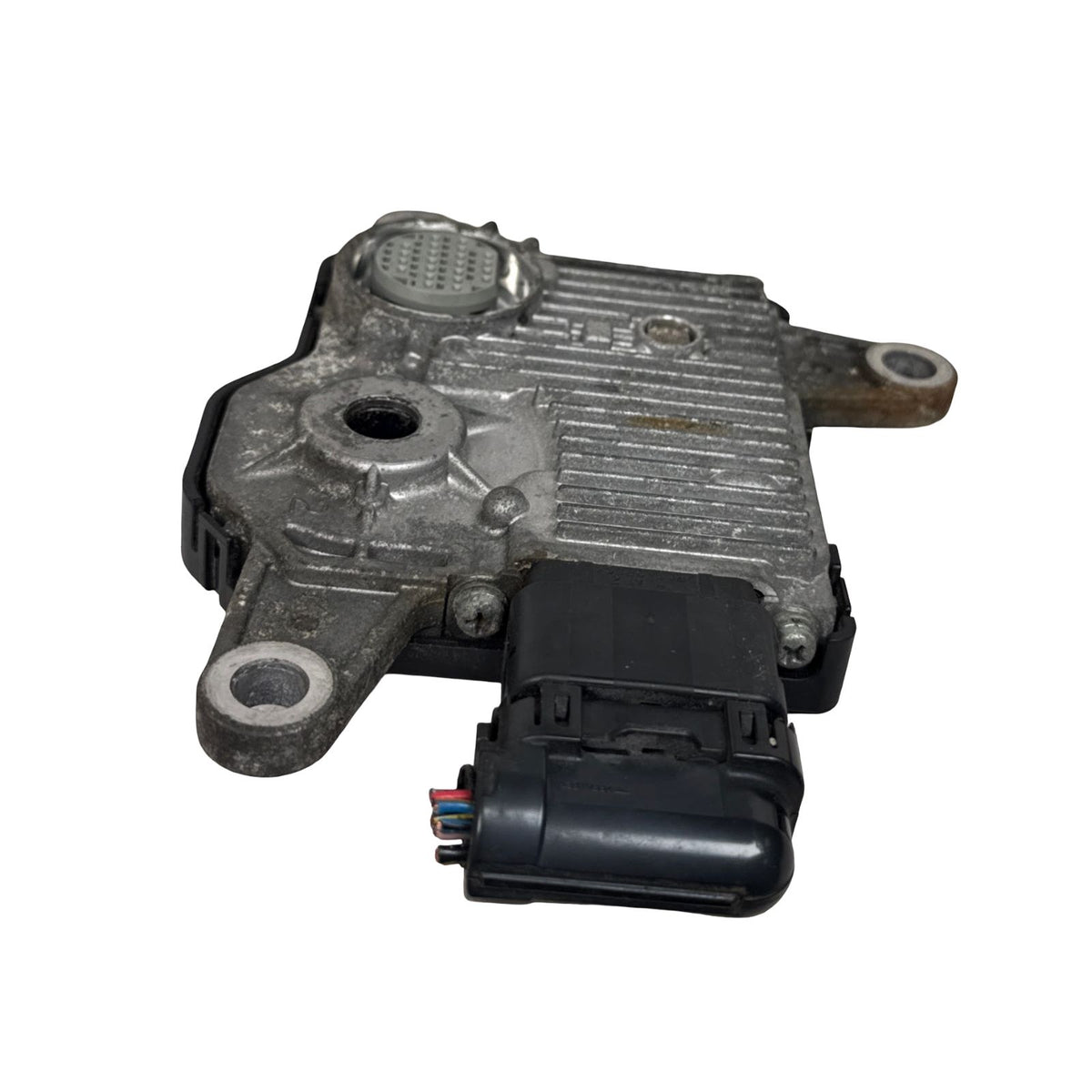

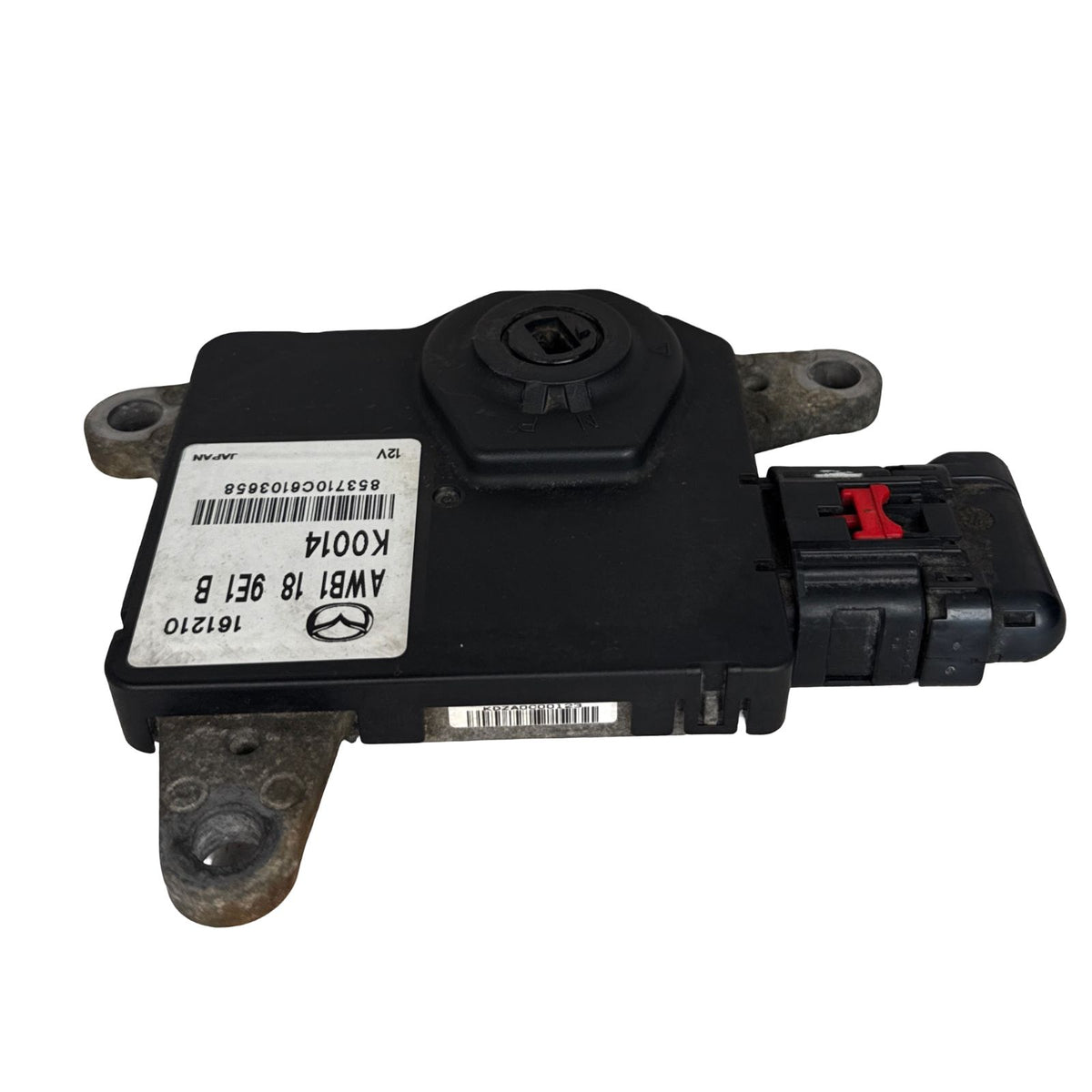

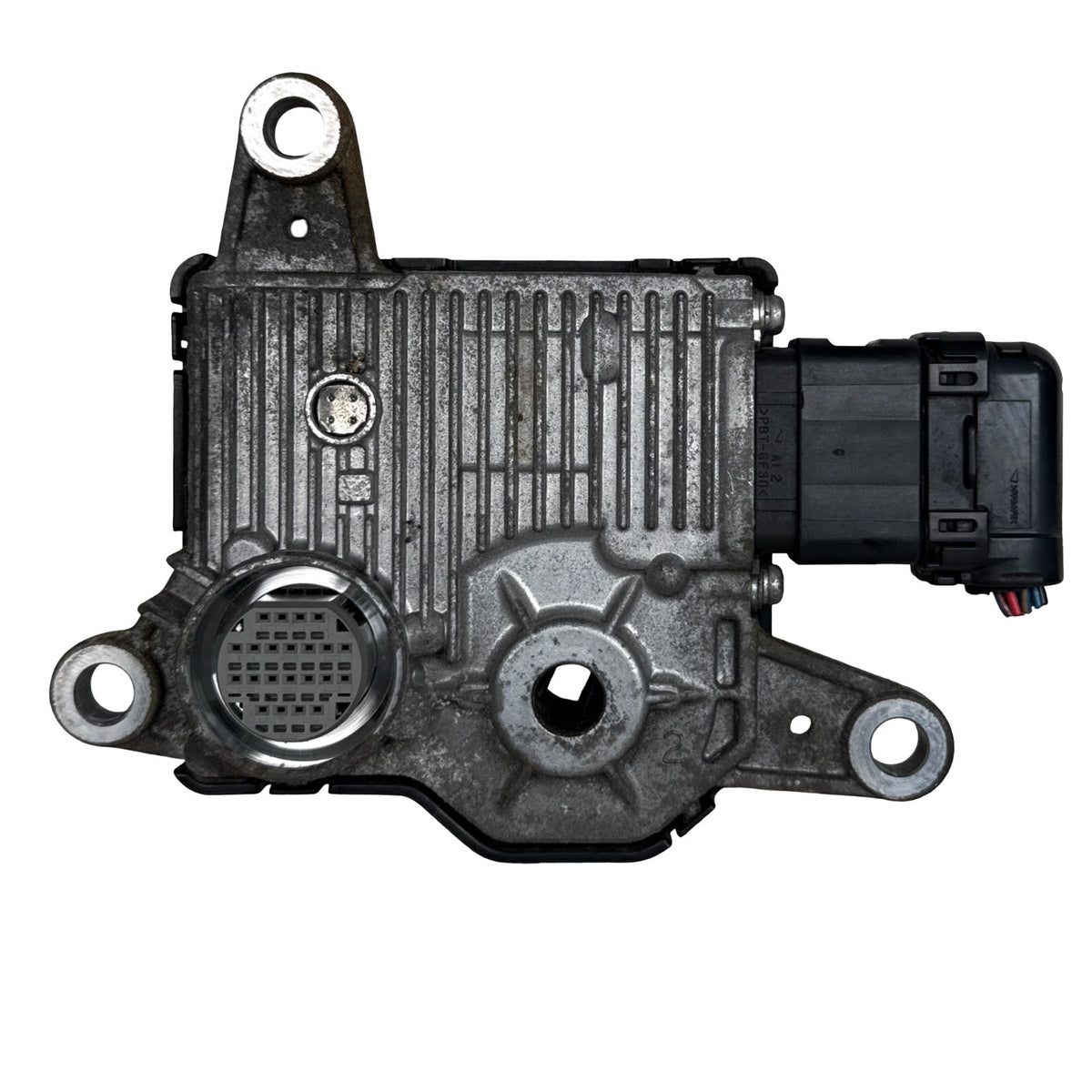

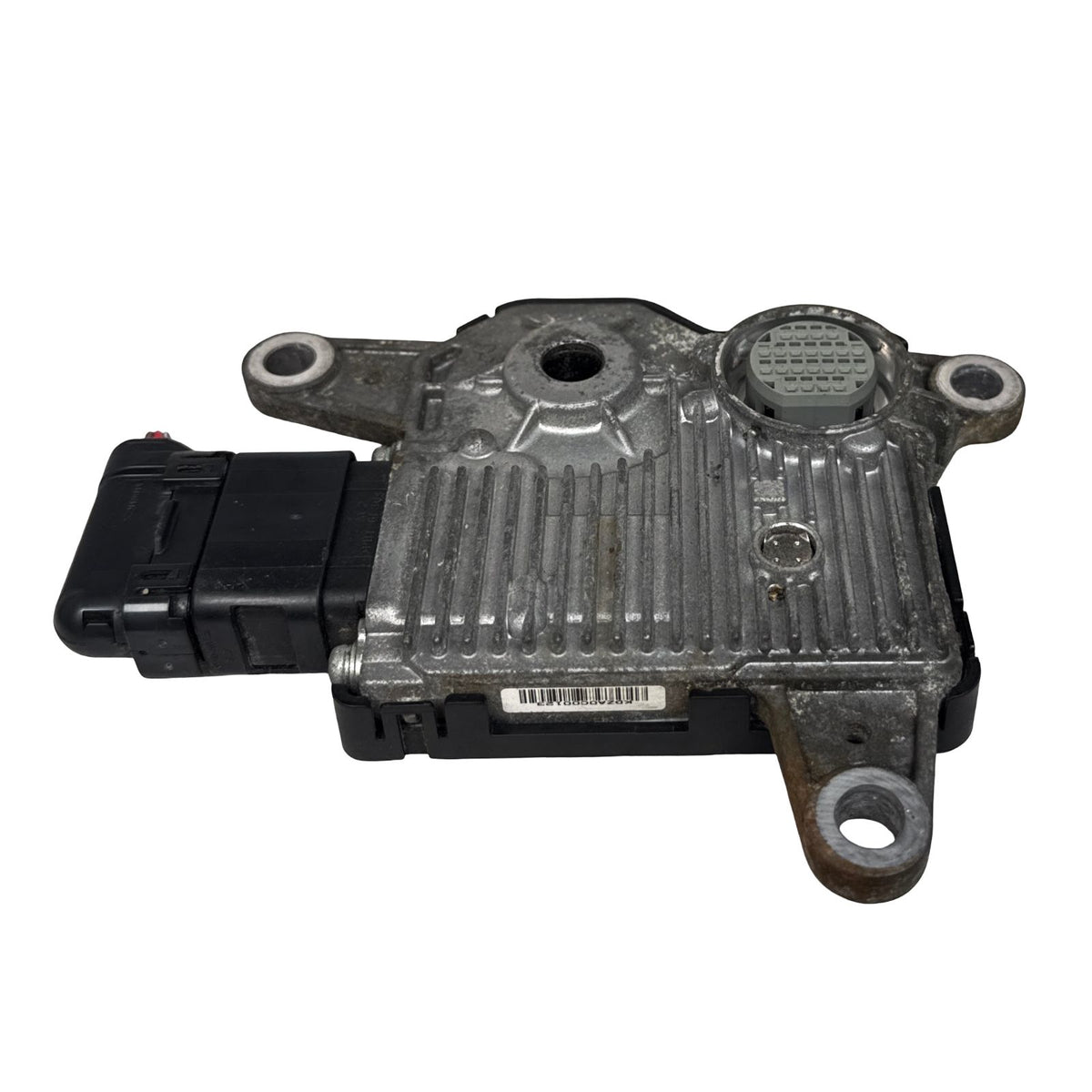

2011-2014 Mazda CX-9 Transmission Control Module TCM AWB1189E1B OEM
AWB1189E1B
VIN programming required after install
This module needs VIN programming after install. A dealer or locksmith with the right scan tool can do it. Not sure your installer can program? Message us first — we'll help you confirm.
Tested functional. Cleaned. Will require programming to your VIN.
Genuine OEM Transmission Control Module TCM (AWB1189E1B) for the 2011-2015 Mazda CX-9. Direct-fit replacement.
From the shop
Transmission control modules on the CX-9 handle shift timing and torque management—when they fail, you get rough shifts, limp mode, or no transmission response at all. This unit is tested functional and cleaned, ready to go once programmed to your VIN at installation. Programming is straightforward at most shops and takes about thirty minutes. Fits 2011–2015 models.
— Hubes
Vehicle fitment
Fits 2011–2014 Mazda CX-9. Replaces OEM # AWB1189E1B.
| Years | Makes | Models |
|---|---|---|
| 2011–2014 | Mazda | CX-9 |
Please note: Aisin-Warner TCM — match the part number on your module label; TCM adaptation/relearn expected after installation.
Is this your problem?
A quick diagnostic from the shop — see the symptoms before you buy, so you order the right part once.
Read the full transcript
Specifications
Part Identification
- OEM Part Number
AWB1189E1B- Brand
- Mazda
- Also Replaces
AWB1-18-9E1,AWB1-18-9E1A,AWB1-18-9E1H,AWB1-18-9E1C- Also Known As
- Transmission Control Module, Transmission Computer, TCU, Transmission Control Unit
Condition & Testing
- Condition
- Used
Specifications
- Material
- Steel, Plastic
- Color
- Black
- Connector Type
- Female
- Terminal Type
- Male Pins (Needle/Square Pin style)
- Terminal Count
- 81
- Placement
- Front
- Left
- Driver Side
- Lower
- Dimensions
- 6.0" H × 10.0" L × 6.0" W · 16.0 oz
Compliance
- Country of Origin
- Japan
