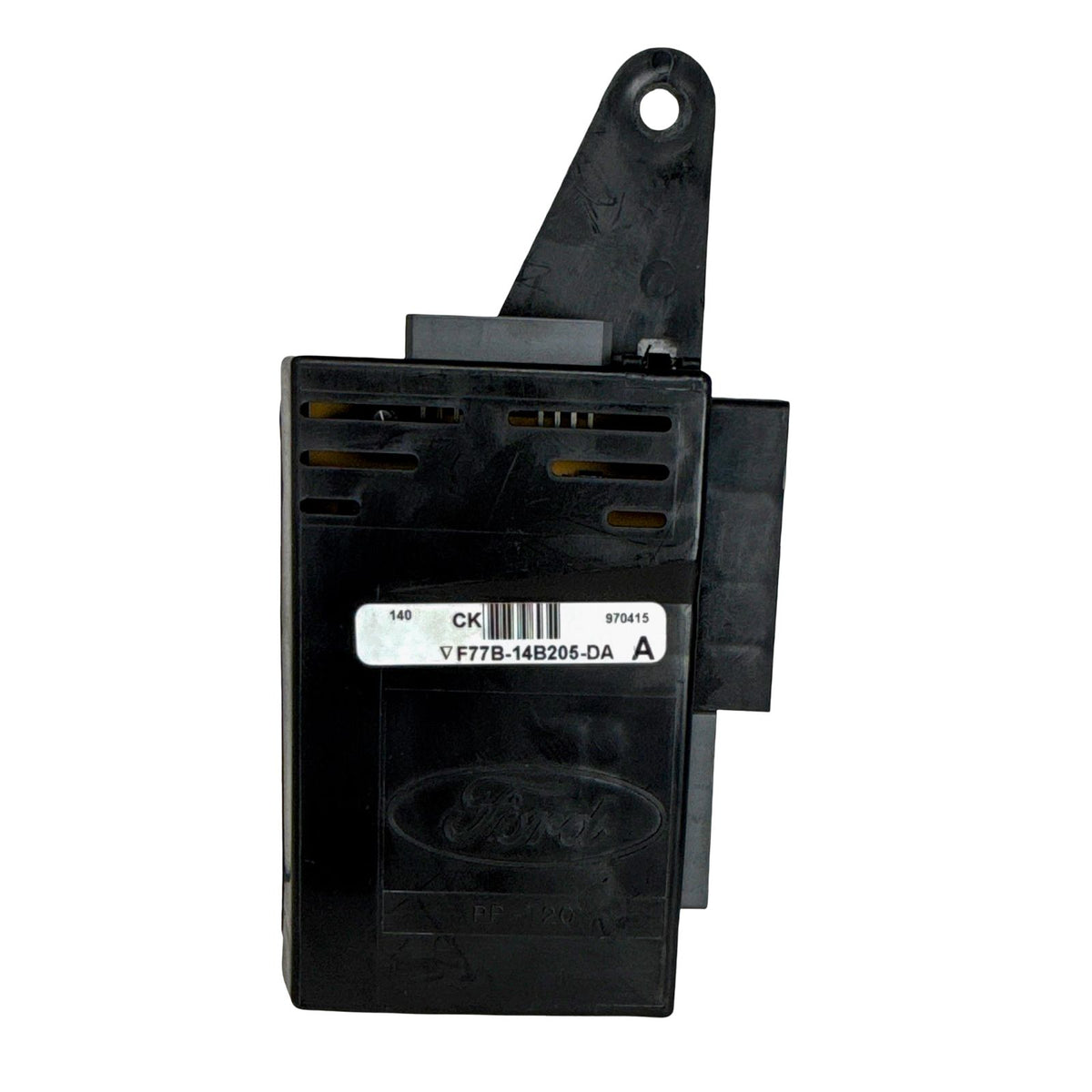

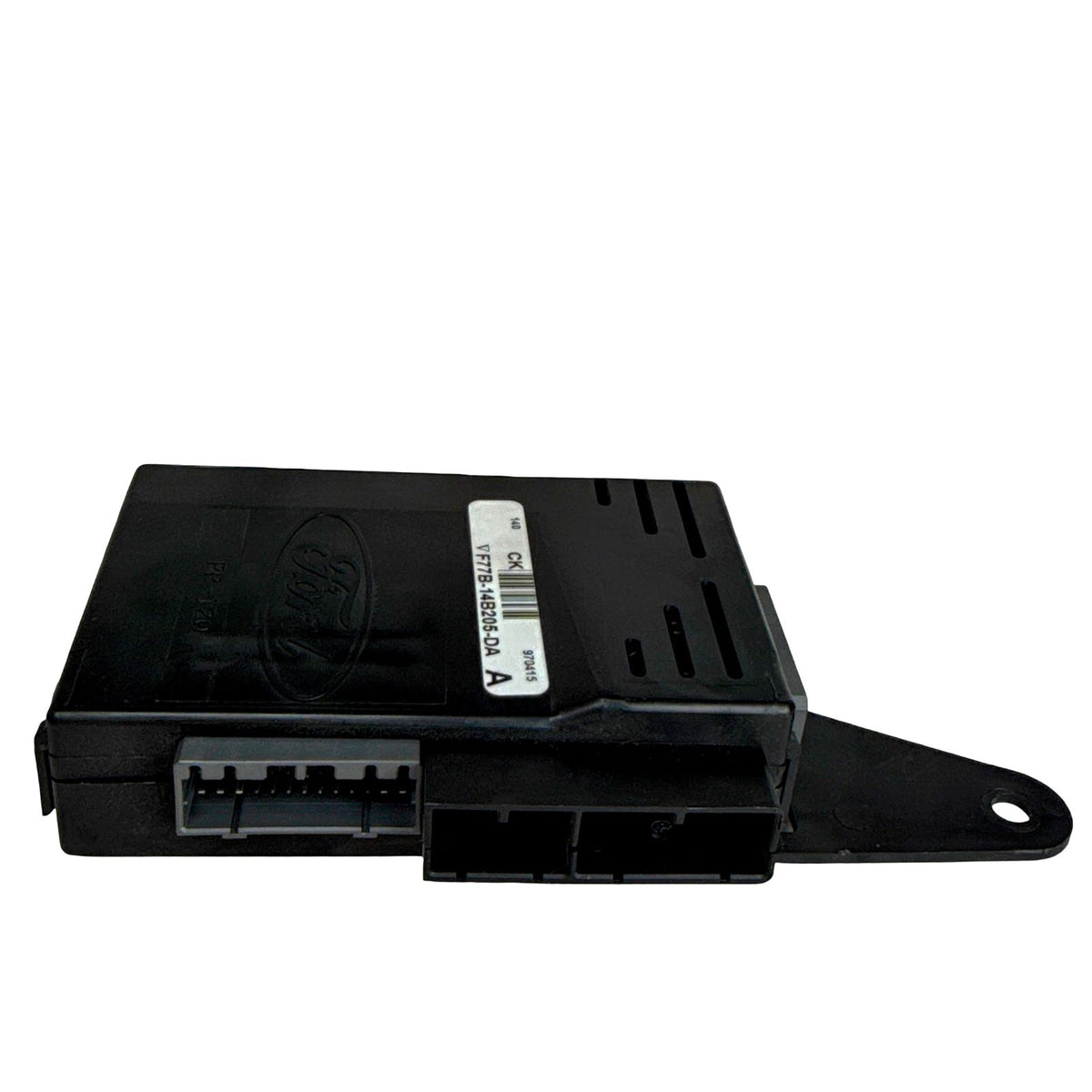

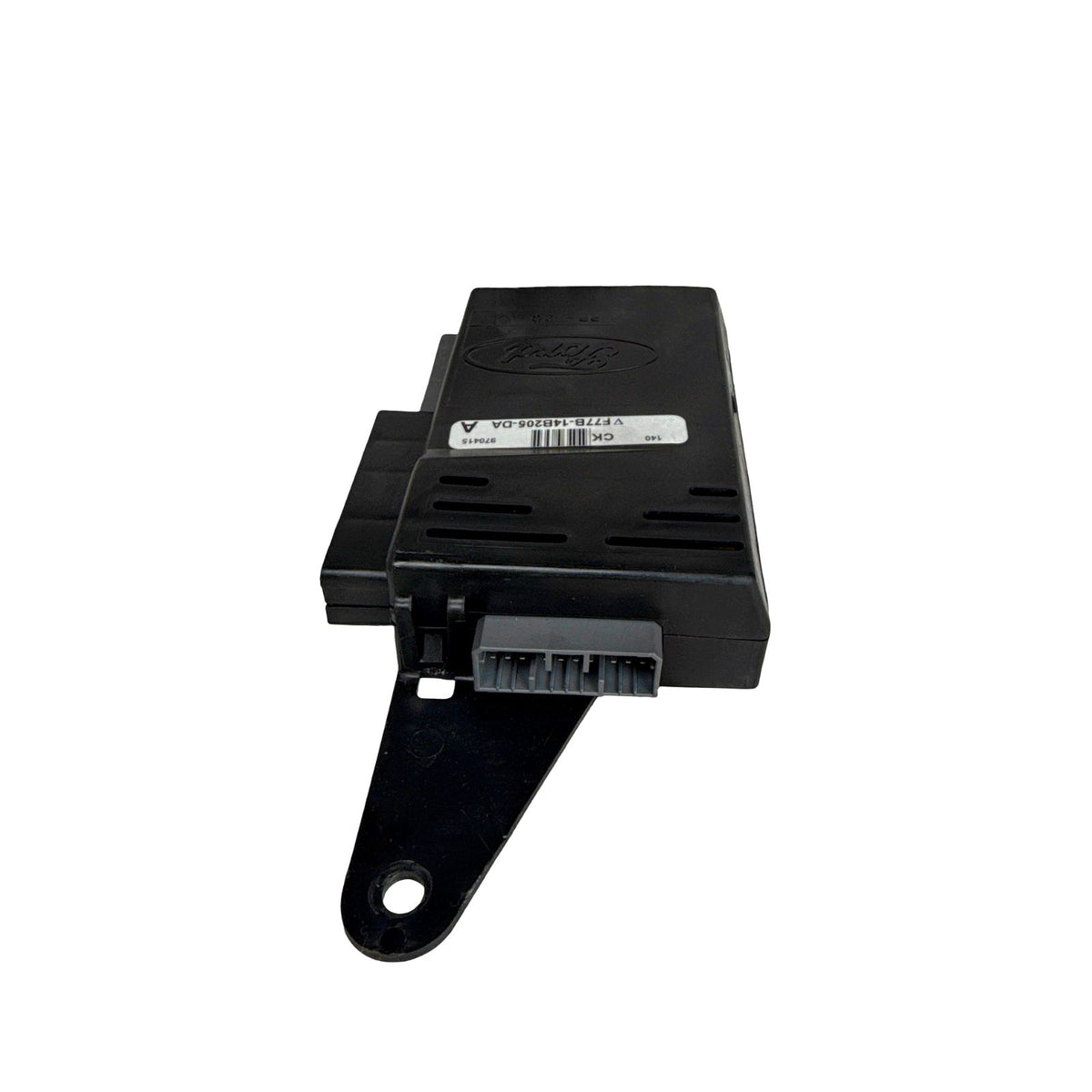

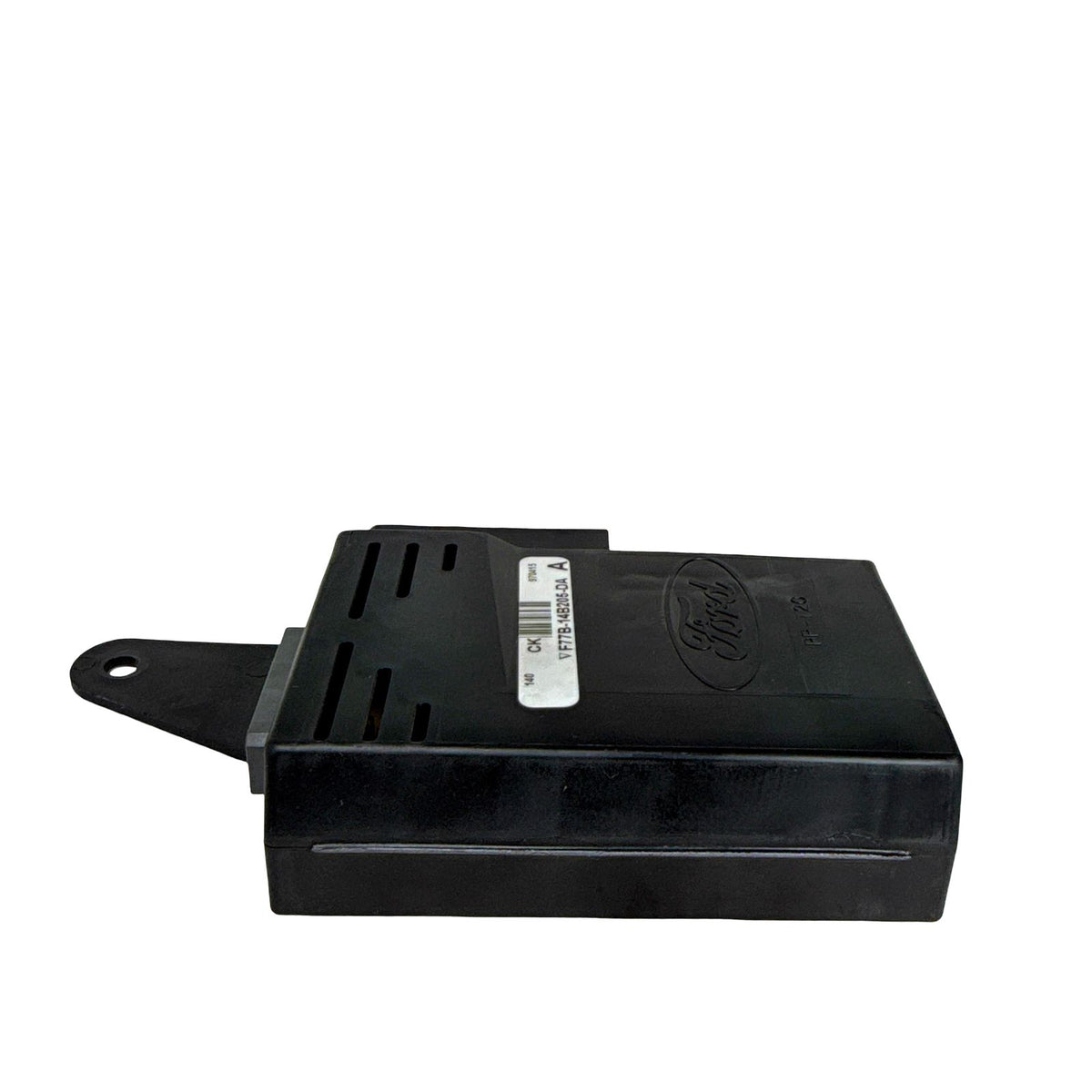

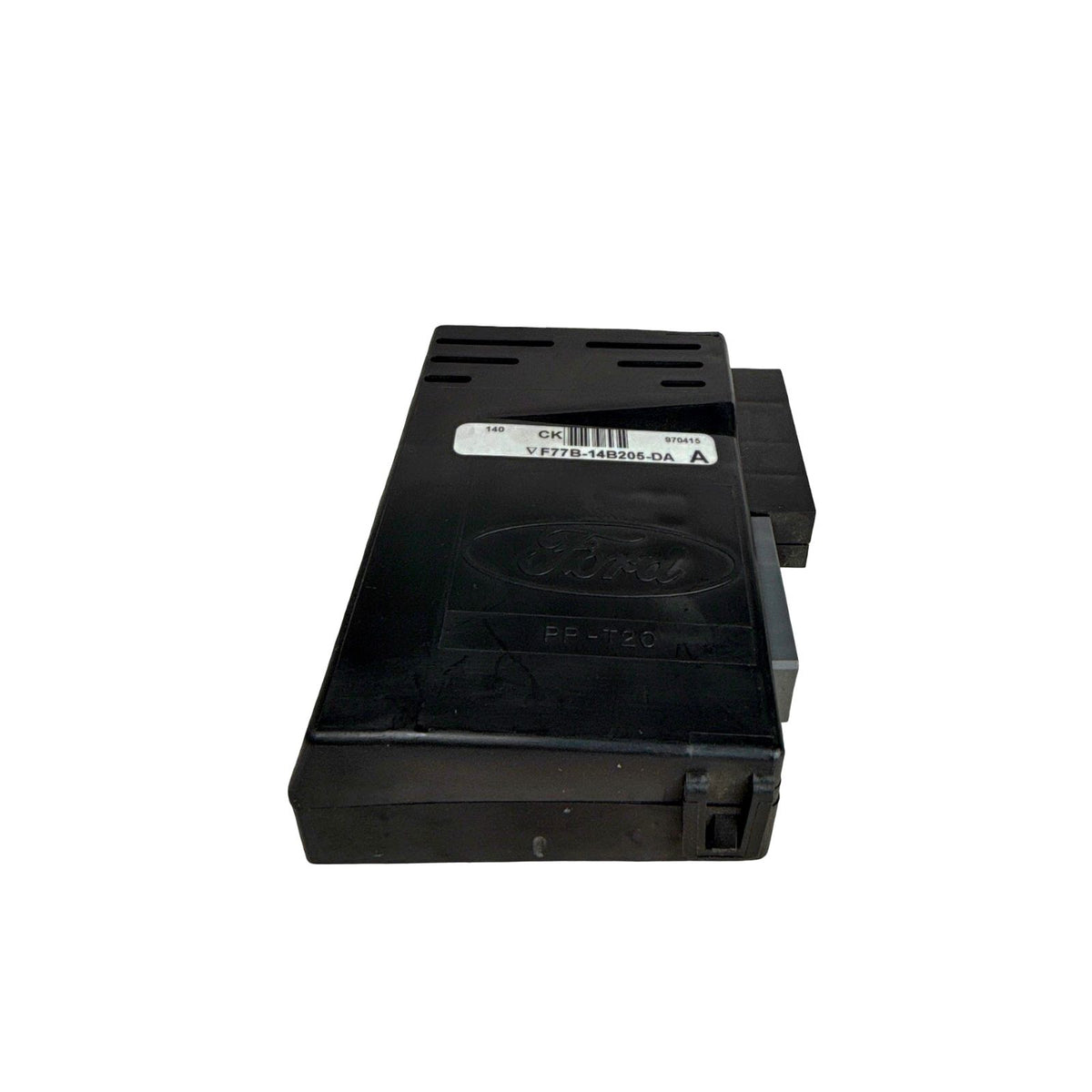

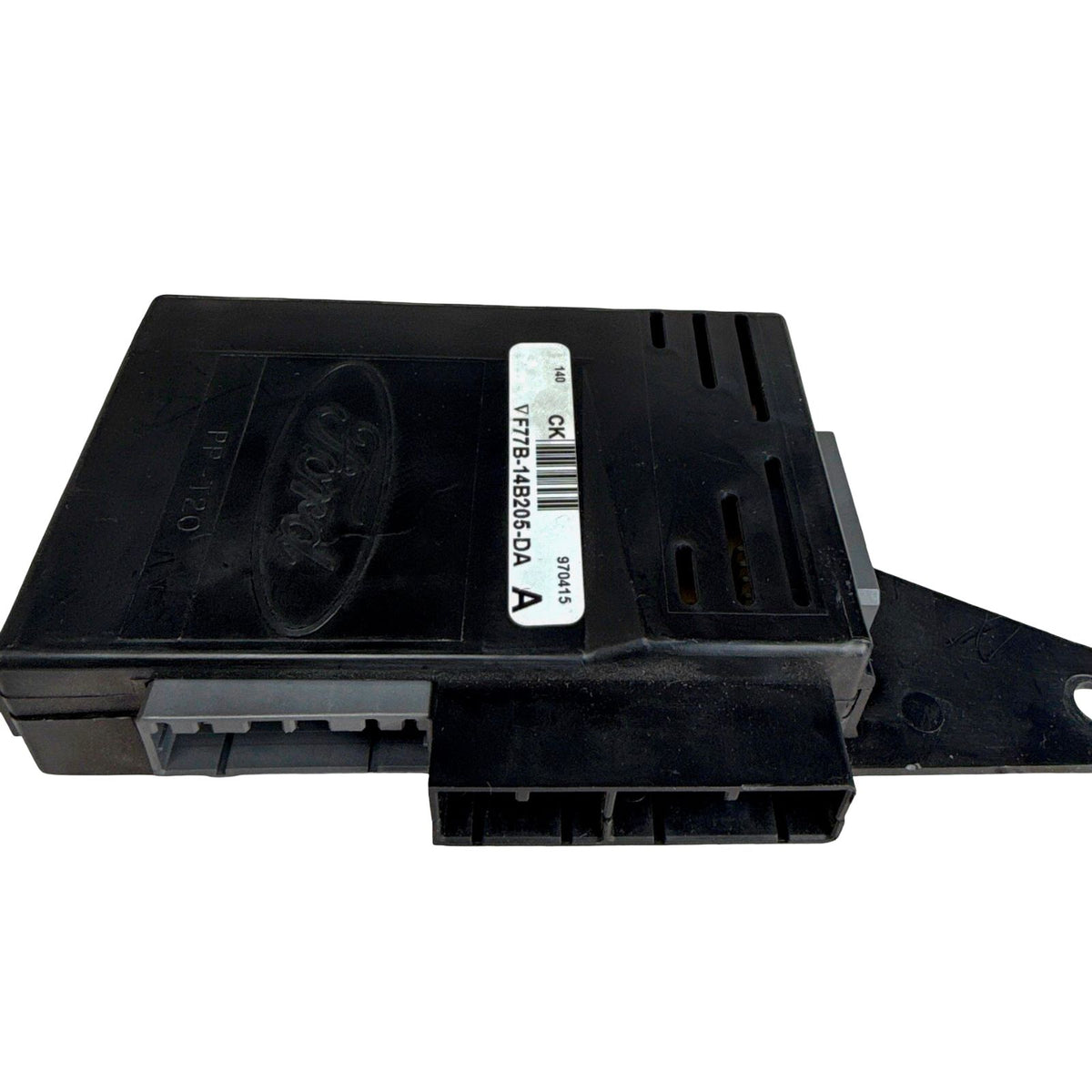

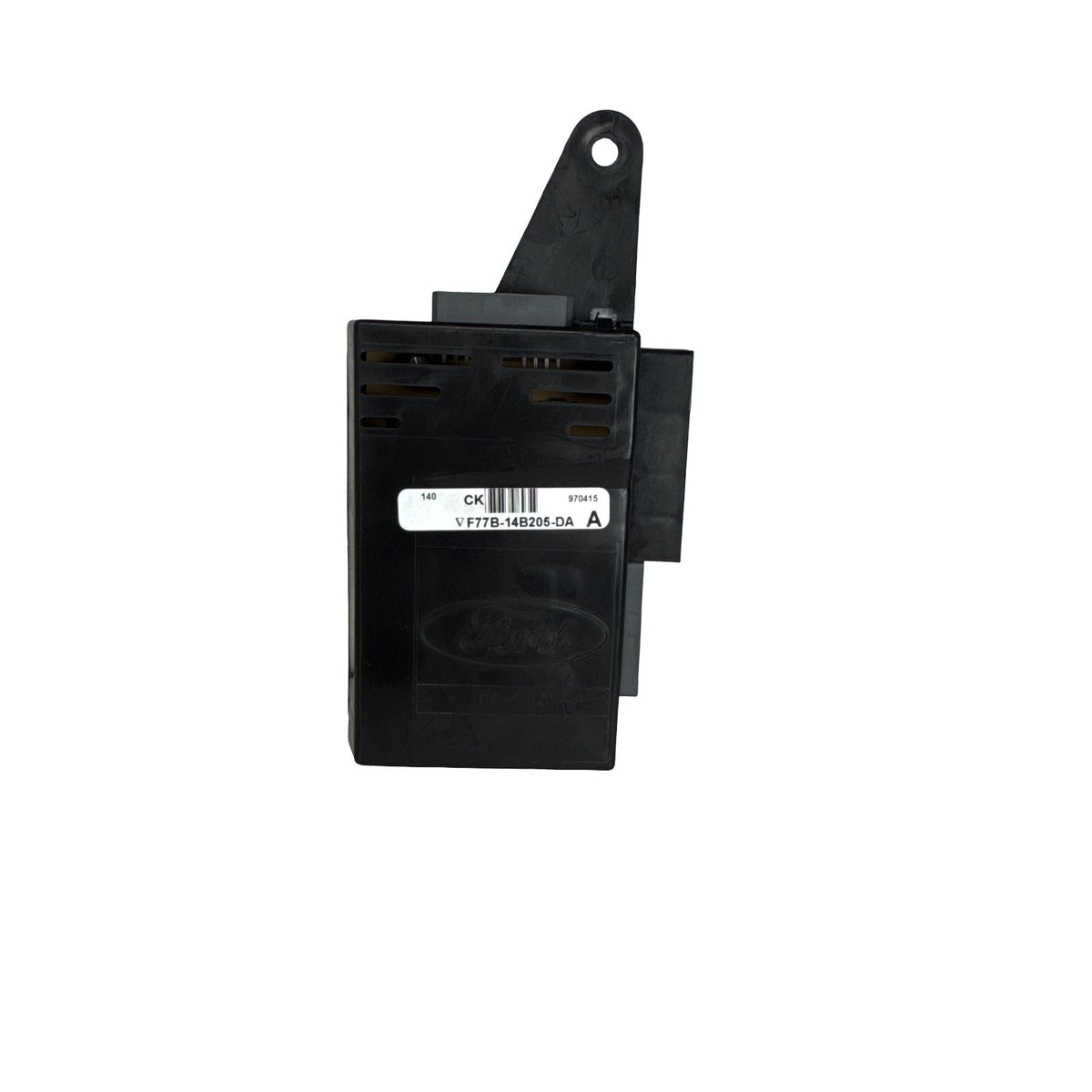

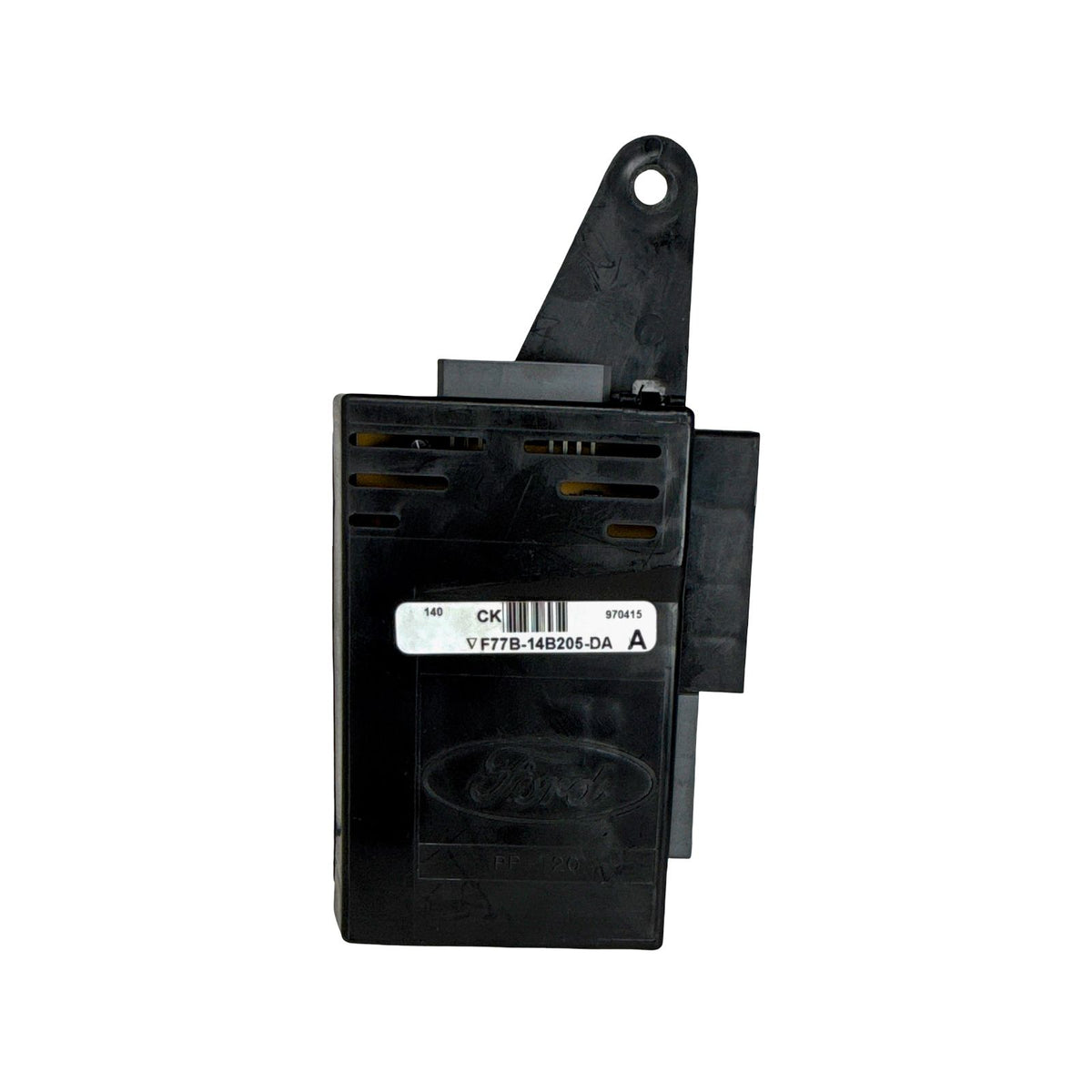

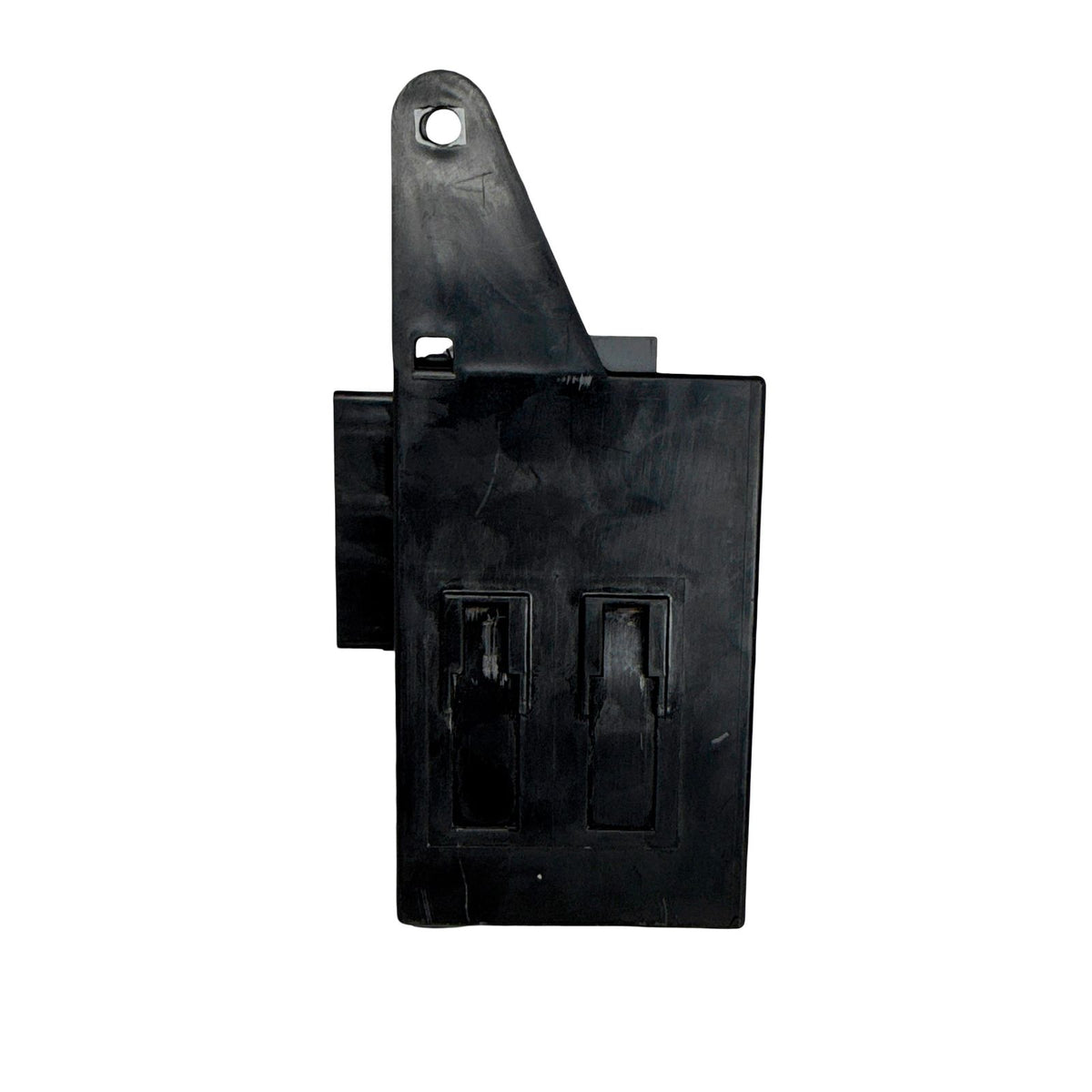

1995-1997 Ford Ranger GEM Multifunction Module F77B-14B205-DA OEM
F77B-14B205-DA
VIN programming required after install
This module needs VIN programming after install. A dealer or locksmith with the right scan tool can do it. Not sure your installer can program? Message us first — we'll help you confirm.
Tested functional. Cleaned.
Genuine OEM GEM Multifunction Module (F77B-14B205-DA) for the 1995-1997 Ford Ranger/Mazda B- Series 2WD only. Direct-fit replacement.
From the shop
The GEM module (General Electric Module) handles lighting, wipers, power windows, and door locks on your Ranger—basically the brain behind most electrical convenience functions. This one's been tested functional and cleaned. If you're chasing intermittent electrical gremlins or a completely dead circuit, swapping the GEM is often faster than chasing wiring. Fits 1995–1997 Ford Ranger.
— Hubes
Vehicle fitment
Fits 1995–1997 Ford Ranger; 1995–1997 Mazda B2300, B3000, B4000. Replaces OEM # F77B-14B205-DA.
| Years | Makes | Models |
|---|---|---|
| 1995–1997 | Ford | Ranger |
| 1995–1997 | Mazda | B2300, B3000, B4000 |
Specifications
Part Identification
- OEM Part Number
F77B-14B205-DA- Brand
- Ford
- Also Replaces
F77B-14B205-DB,F67Z-14B205-DA- Also Known As
- Generic Electronic Module, Ford GEM, Central Timer Module, CTM, Multifunction Module
Condition & Testing
- Condition
- Used
Specifications
- Material
- Plastic
- Color
- Black
- Connector Type
- ["Latching Block Connector"]
- Terminal Type
- Flat Male Pin / Blade terminals
- Terminal Count
- 44
- Placement
- Front
- Center
- Upper
- Dimensions
- 6.0" H × 10.0" L × 6.0" W · 24.0 oz
Compliance
- Country of Origin
- United States
Frequently asked questions
Will this GEM Multifunction Module fit my 1995-1997 Ford Ranger?
Is this part tested?
Is this OEM or aftermarket?
What is the OEM part number?
Can you verify fitment before I buy?
What is your return policy?
What is this GEM Multifunction Module also called?
What other part numbers does this GEM Multifunction Module fit?
