Fuse Box / TIPM

2016-2019 Chevy Silverado 1500 GMC Sierrra 1500 Engine Fuse Box 84075776 OEM

OEM Part Number
84075776
by GM·MPN 84075776
$105.99
Sold out — sourcing in progress
Will this fit your vehicle? See the fitment table below to check.
PART CONDITION

Tested functional. All relays and fuses checked. Cleaned.

Other Fuse Boxes in stock now

Can’t wait? Ask us to source this exact part →
5.0 (25)
Free Shipping — US and US territories

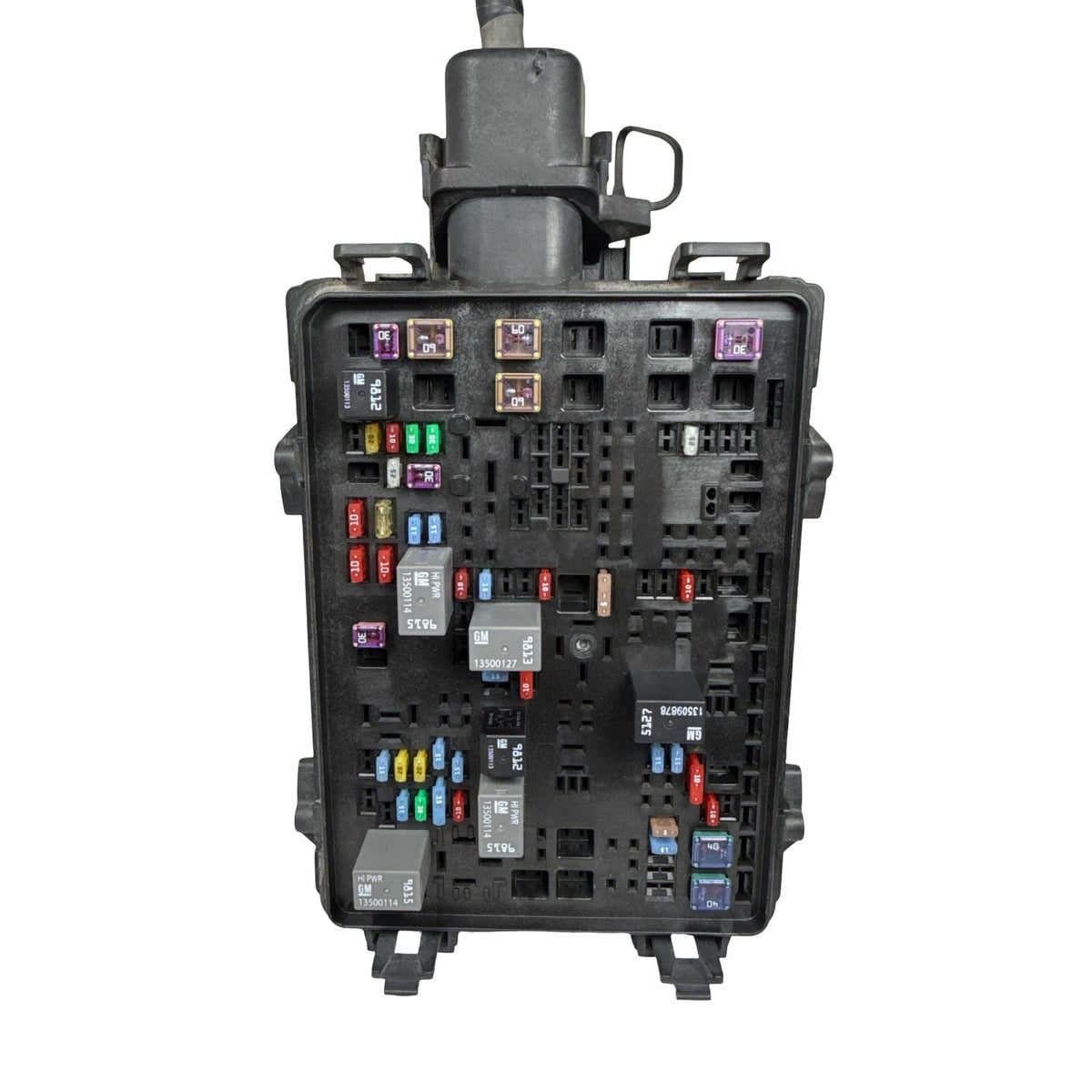

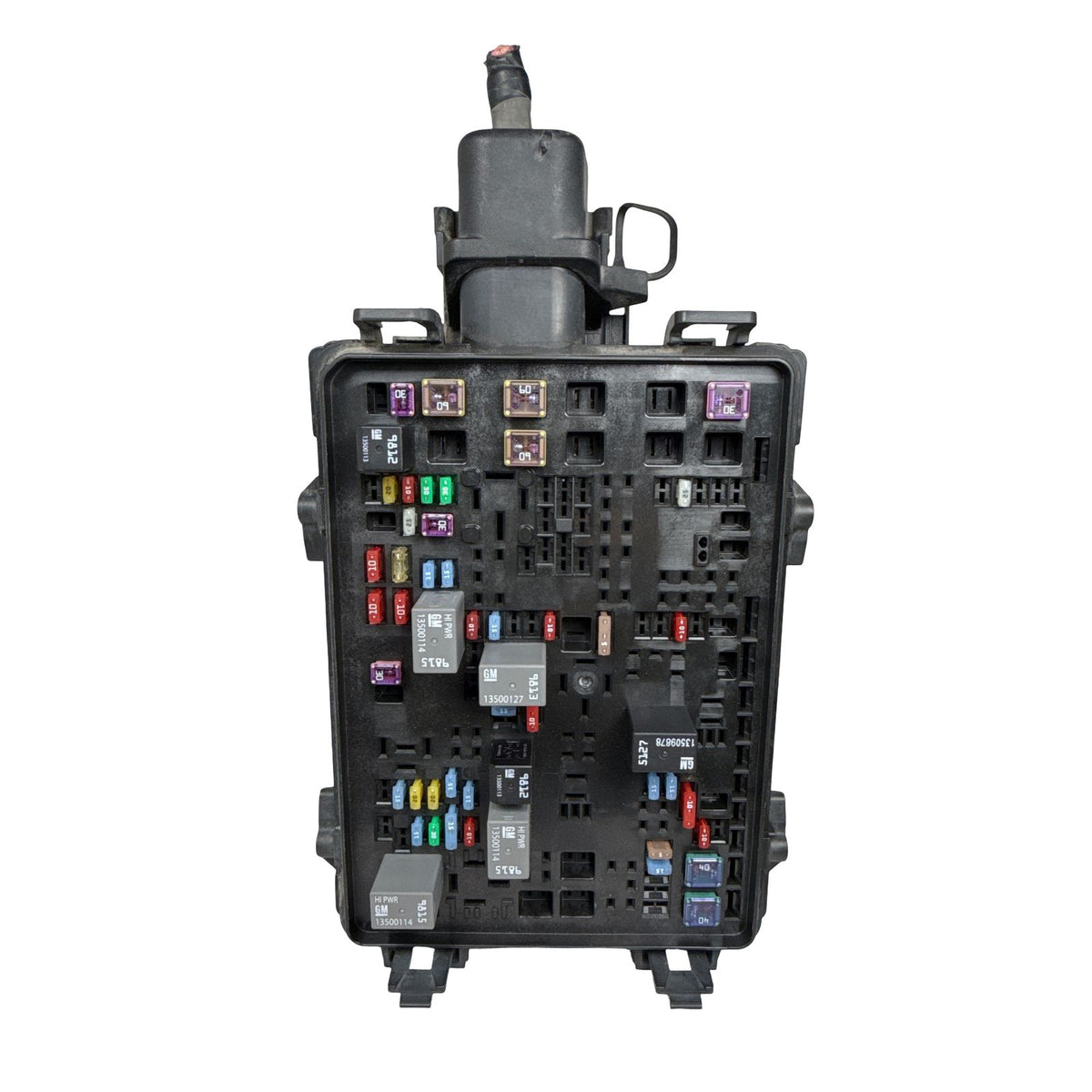

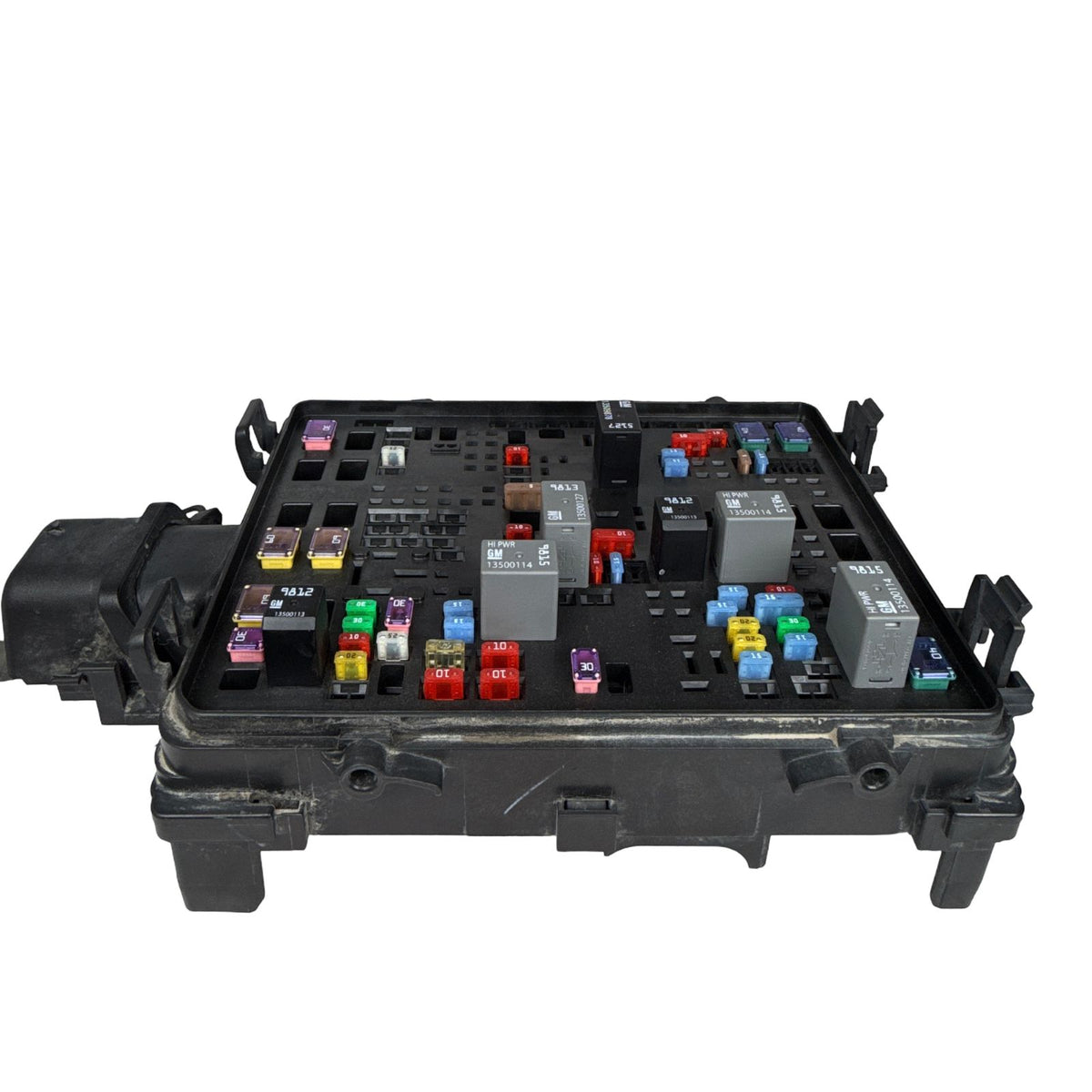

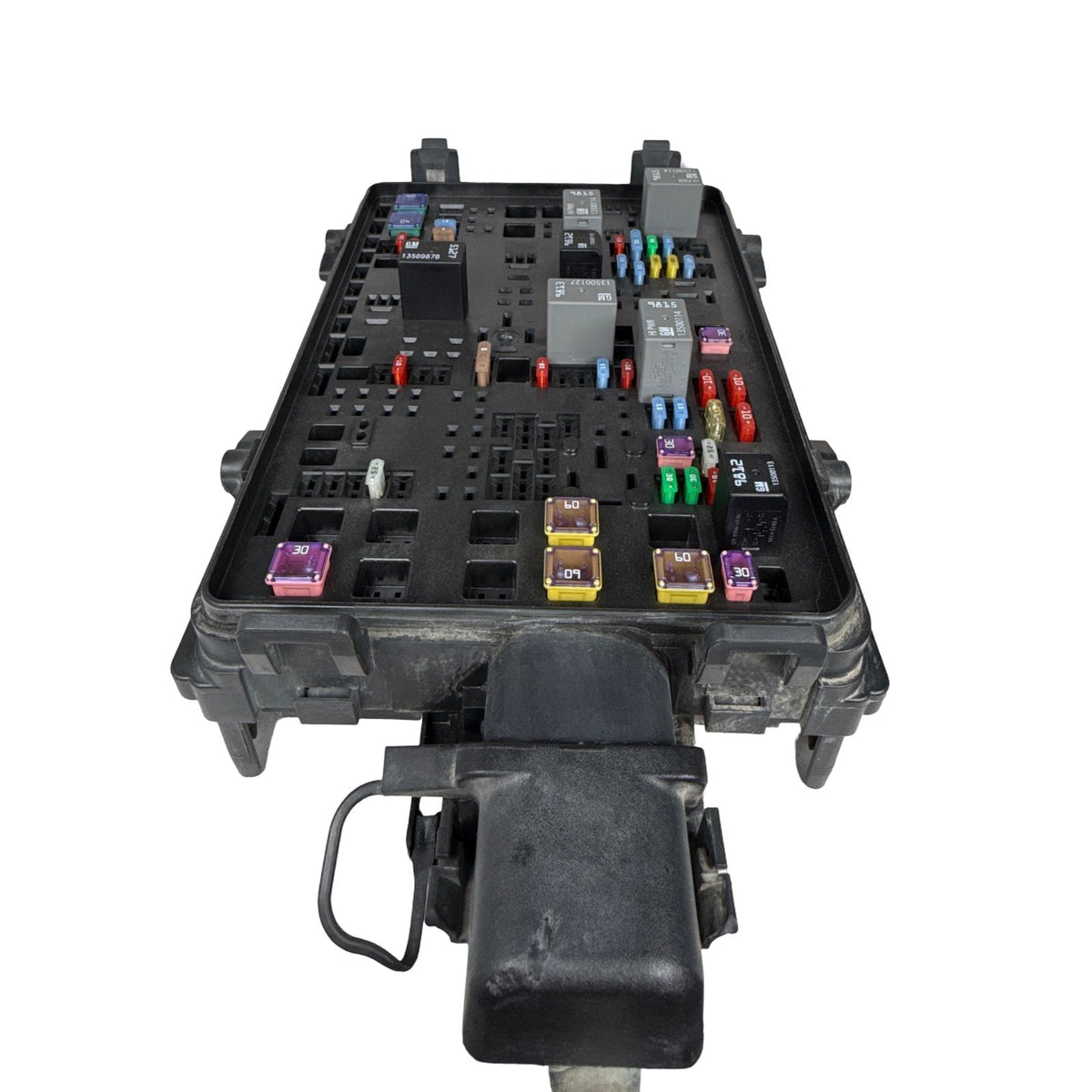

This is the OEM engine fuse box for 2016–2019 Chevrolet Silverado 1500/2500/3500 and GMC Sierra 1500/2500/3500, mounted at the front driver-side of the engine compartment. OEM number 84075776 (interchange 84303175, 84075777, 84075778). Tested functional with all relays and fuses checked and cleaned — no programming required.

From the shop

Fuses and relays for the body and accessory circuits live in this box, standalone rather than folded into a switched module. When something acts up, it's usually one of those circuits going dead or getting flaky rather than one obvious failed part, so this is often the first thing worth checking. Tested functional. All relays and fuses checked. Cleaned. Mounts front, left, driver side. No programming required. Fits 2016–2019 Chevrolet Silverado 1500, Silverado 2500 and Silverado 3500, GMC Sierra 1500, Sierra 2500 and Sierra 3500. Part numbers: 84075776, interchange 84303175, 84075777, 84075778. Ships same day Mon–Fri if you order before 3pm EST. — Hubes

— Hubes

Vehicle fitment

Fits 2016–2019 Chevrolet Silverado 1500; 2016–2019 Chevrolet Silverado 2500; 2016–2019 Chevrolet Silverado 3500; 2016–2019 GMC Sierra 1500; 2016–2019 GMC Sierra 2500; 2016–2019 GMC Sierra 3500. Replaces OEM # 84075776.

Years Makes Models
2016–2019 Chevrolet Silverado 1500
2016–2019 Chevrolet Silverado 2500
2016–2019 Chevrolet Silverado 3500
2016–2019 GMC Sierra 1500
2016–2019 GMC Sierra 2500
2016–2019 GMC Sierra 3500

Is this your problem?

A quick diagnostic from the shop — see the symptoms before you buy, so you order the right part once.

Read the full transcript
Symptoms of a bad tip-em and how to tell if your totally integrated power module is failing. If you drive a Chrysler Ram Jeep or Dodge, you're probably aware that these things are famous for causing absolute chaos when they go bad. So how do you know that your fuse box is actually your problem? The classic Chrysler symptom is a car that simply won't start because the internal fuel relay is cycling on and off, on and off and it ends up draining your battery overnight. You might also notice headlights that won't turn off, windshield wipers turning on all by themselves or power windows completely dying. After 30 years in OEM parts, I can tell you that these things punch way above their weight class as far as issues go. It's usually not a blown fuse, it's the internal circuit board layers and relays failing inside the box itself. So a visual check is usually not going to show you the damage. Dealer replacements are insanely expensive and known to be back ordered. Hit the link in my bio, check out my tested OEM fuse boxes and tip-em's or just comment your vehicle make and model and I'll hook you up with the correct replacement. [BLANK_AUDIO]

Specifications

Part Identification

OEM Part Number
84075776
Brand
GM
Also Replaces
84303175, 84075777, 84075778
Also Known As
Junction Box, Relay Panel, Power Distribution Module, PDC, Relay Box, Power Distribution Box, Junction Box

Condition & Testing

Condition
Used

Specifications

Material
Plastic
Color
Black
Connector Type
Rectangular GM-style multi-pin connectors
Terminal Type
Mixed
Terminal Count
150
Placement
  • Front
  • Left
  • Driver Side
What's Included
  • Plugs
  • Connectors
  • Pigtails
  • Fuses
  • Relays
Dimensions
6.0" H × 12.0" L × 10.0" W · 80.0 oz

Compliance

Country of Origin
United States

Frequently asked questions

Will this Fuse Box / TIPM fit my 2016-2019 Chevrolet Silverado 1500, 2016-2019 Chevrolet Silverado 2500, 2016-2019 Chevrolet Silverado 3500, 2016-2019 GMC Sierra 1500 and 2 other vehicles?
Yes — this is a direct-fit OEM replacement for the 2016-2019 Chevrolet Silverado 1500, 2016-2019 Chevrolet Silverado 2500, 2016-2019 Chevrolet Silverado 3500, 2016-2019 GMC Sierra 1500 and 2 other vehicles. Message us your VIN if you want us to double-check compatibility before you buy.
Is this part tested?
Yes. Every part is inspected and tested before listing. Grade A condition with a 30-day money-back guarantee.
Is this OEM or aftermarket?
100% OEM. Never aftermarket. We only sell genuine factory parts.
What is the OEM part number?
The OEM part number is 84075776.
Can you verify fitment before I buy?
Absolutely — message us your VIN and we'll confirm this part fits your vehicle before you purchase.
What is your return policy?
30-day money-back guarantee on every order. Free return shipping if the part doesn't fit or match the description.
What is this Chevy 1500 Sierrra 1500 Engine Fuse Box also called?
This Chevy 1500 Sierrra 1500 Engine Fuse Box is also known as: Totally Integrated Power Module, Junction Box, Relay Panel, Power Distribution Module, PDC, IPDM, Smart Junction Box, SJB, Relay Box, Power Distribution Box, Junction Box. These are different names for the same part.
What other part numbers does this Chevy 1500 Sierrra 1500 Engine Fuse Box fit?
This Chevy 1500 Sierrra 1500 Engine Fuse Box is interchangeable with the following OEM part numbers: 84303175, 84075777, 84075778. The primary OEM part number is 84075776.
